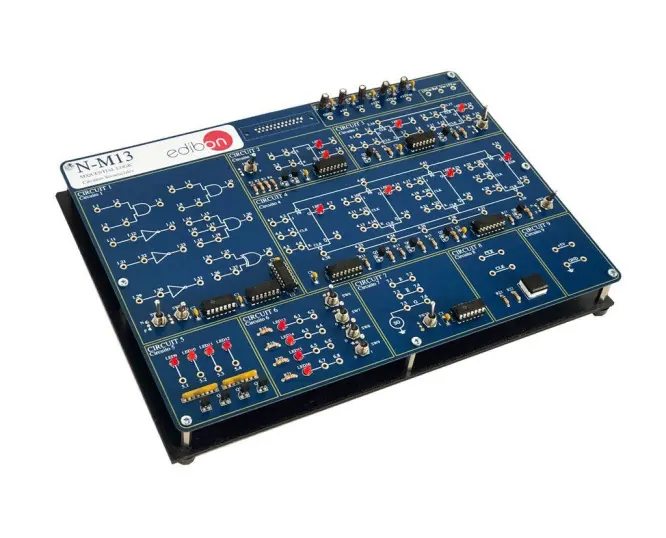

N-M13: Basic Sequential Circuits Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers sequential logic, where the output depends on the value previously present at the output as well as on the inputs, so the circuits hold memory. Students study the standard sequential blocks, with fault simulation available in most circuits.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
