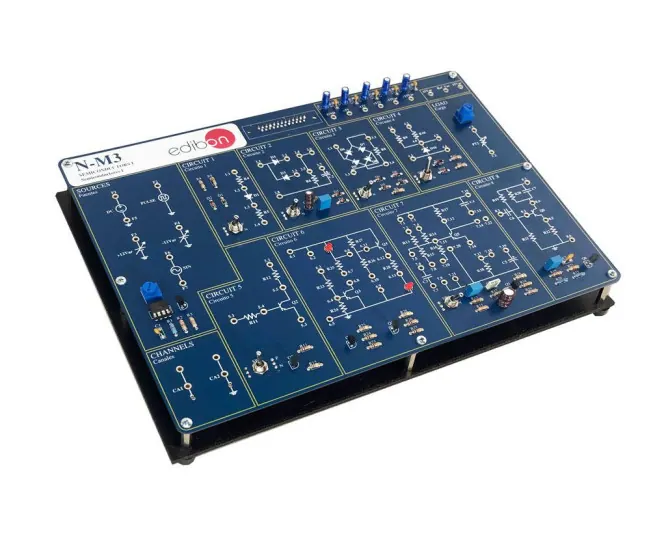

N-M3: Semiconductors I Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the basic concepts of diodes as extrinsic semiconductors, with practical measurement of their characteristics and the rectifying circuits built from them. Faults can be simulated in most circuits so the student must find the damaged component or the wrong connection.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
