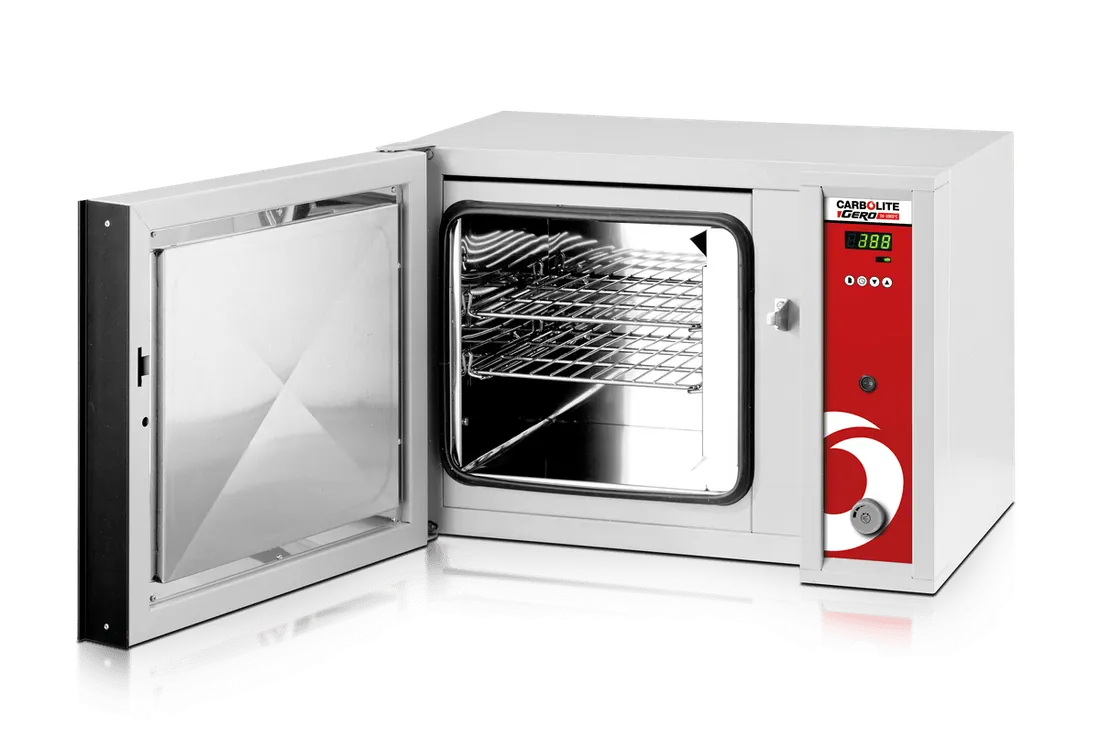

Natural Convection Laboratory Oven PN
Brand: Carbolite Gero | Category: Nanotechnology
A bench mounted 300 deg C laboratory oven in which air circulates by natural convection. The slow airflow suits powders that would be disturbed by a fan and reduces the risk of cross contamination between samples, and the design allows use in an ISO 8 working area.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 300 deg C |
| Minimum temperature | ambient plus 30 deg C |
| Temperature stability | plus or minus 0.5 deg C |
| Temperature uniformity | plus or minus 7.0 deg C at 300 deg C |
| PN30 model | 27 litre volume, 750 W maximum power, 37 kg |
| Specification | R38 PID controller, chemically resistant stainless steel liner |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
