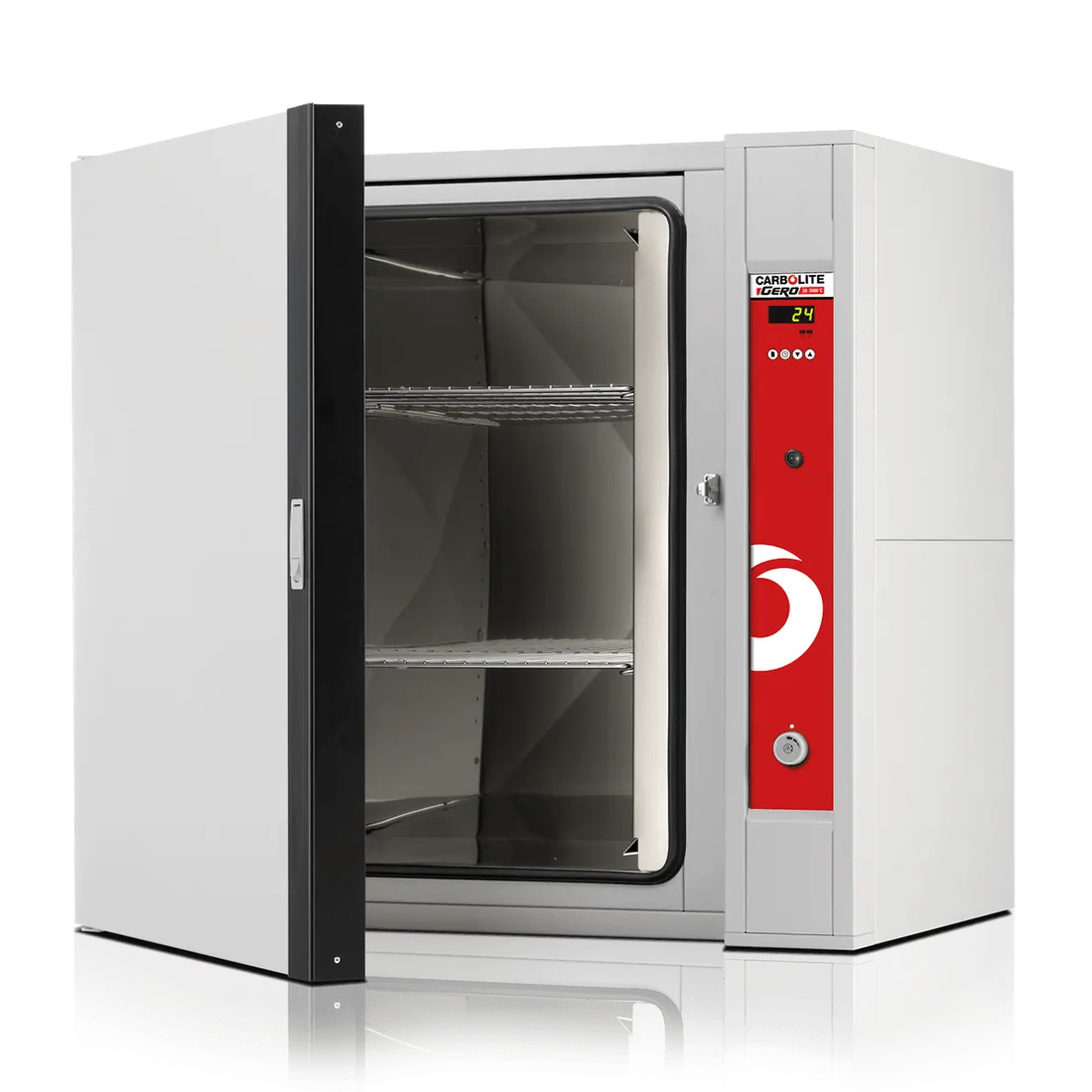

Fan Convection Laboratory Oven PF
Brand: Carbolite Gero | Category: Nanotechnology
A range of four bench mounted 300 deg C laboratory ovens with fan convection. Forced air circulation gives better temperature uniformity and faster recovery after the door is opened than the natural convection PN models.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 300 deg C |
| Chamber volumes | 28 to 230 litres |
| Temperature stability | plus or minus 0.2 deg C |
| Temperature uniformity | plus or minus 5.0 deg C at 300 deg C |
| PF30 model | 28 litre volume, 1000 W maximum power, heat-up time 40 minutes |
| Specification | R38 digital PID controller, chemically resistant stainless steel liner |
