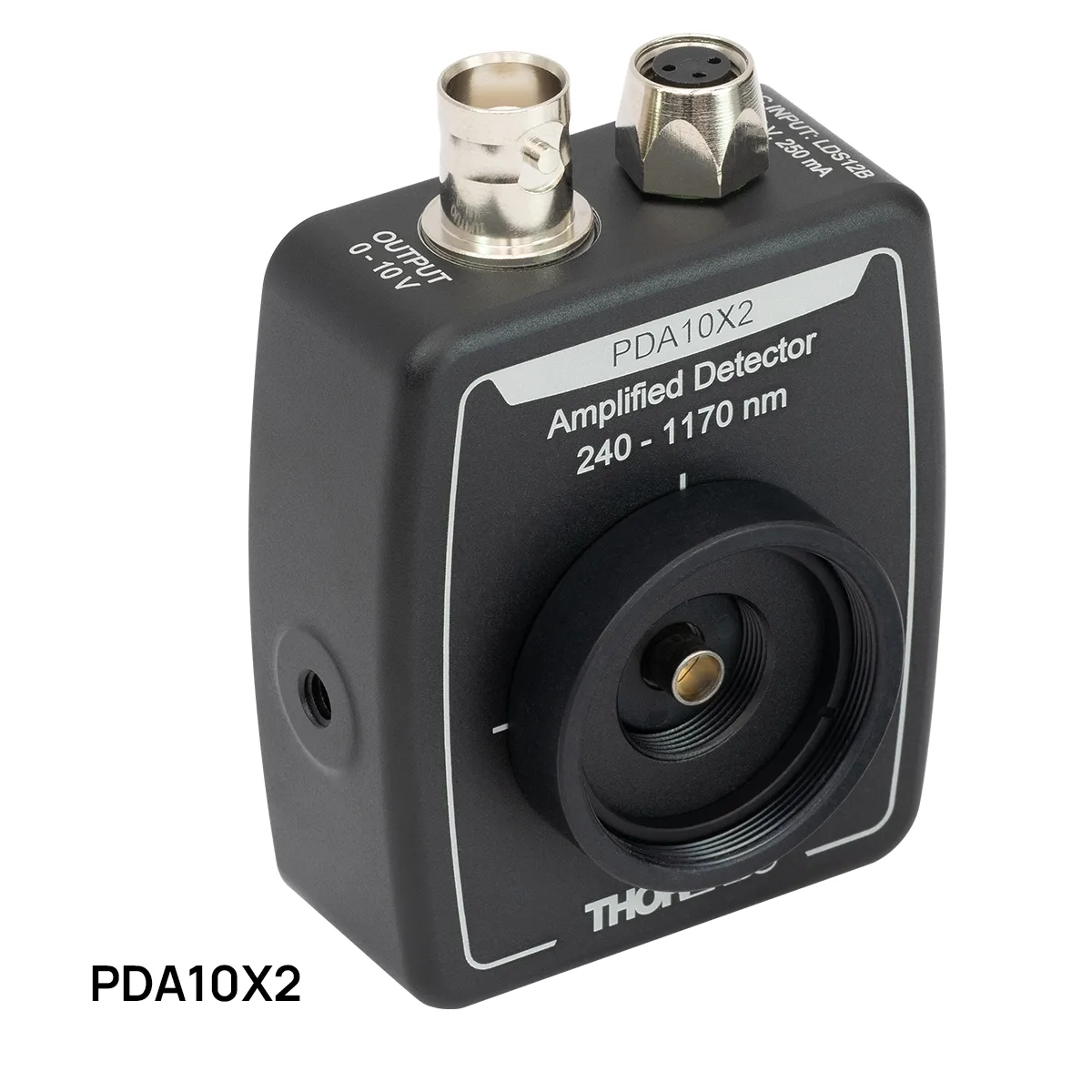

PDA Series Si and Black Si Free-Space Amplified Photodetectors
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Silicon photodetectors with a built-in transimpedance amplifier, in fixed gain, switchable gain and USB data acquisition versions. They are the workhorse detector for laser pulse monitoring and general laboratory photodetection.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Wavelength ranges from 200 nm to 1170 nm |
| Specification | Maximum bandwidths up to 1.5 GHz |
| PDA10A2 | 200 to 1100 nm, DC to 150 MHz, NEP 29.2 pW per root Hz |
| PDA36A2 switchable gain | 350 to 1100 nm, DC to 12 MHz |
| Specification | PDF10A2 sensitivity down to 3.0 x 10-3 pW per root Hz |
| Specification | Fixed gain from 10 kV/A to 1 x 109 kV/A depending on model |
