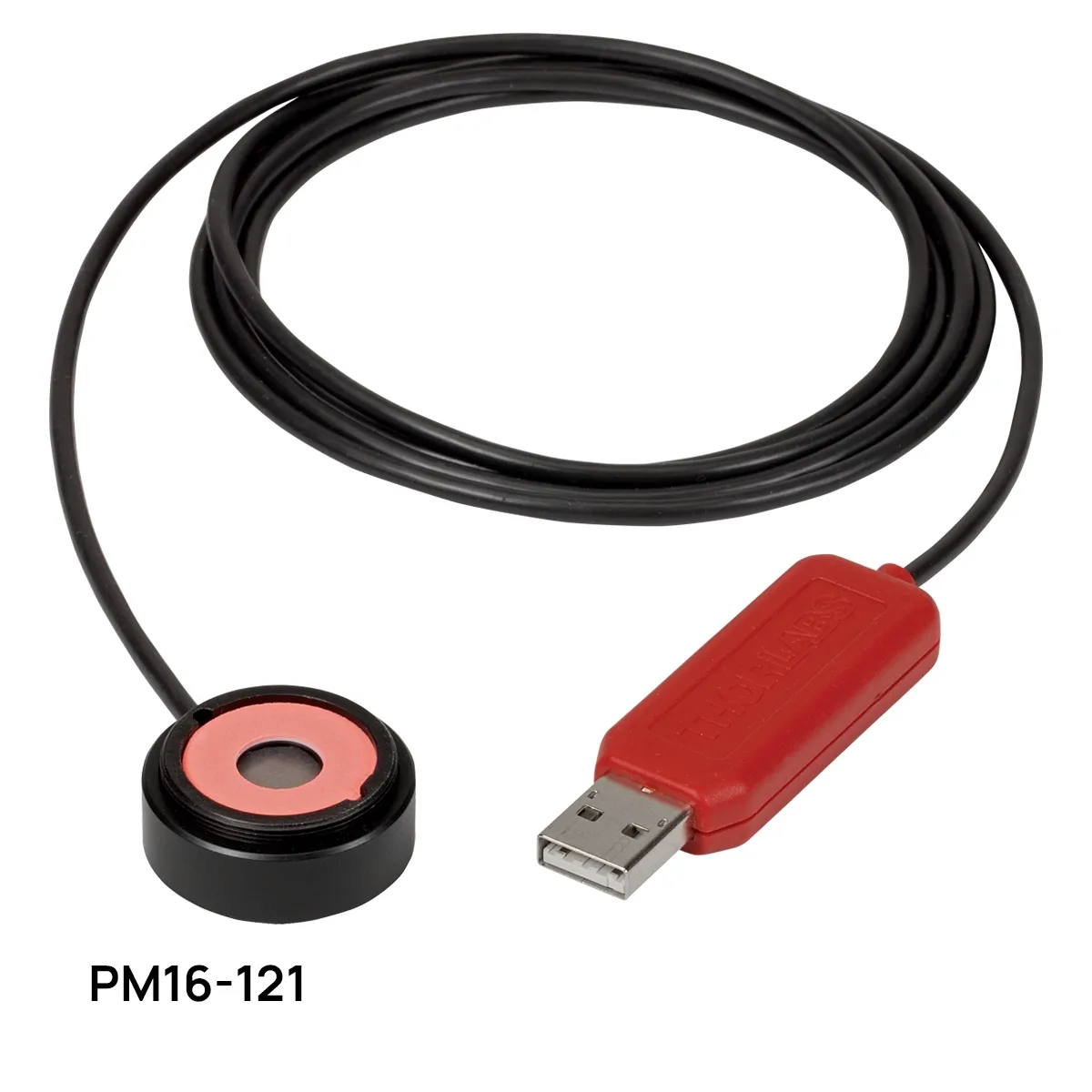

PM16 Series Compact USB Power Meters
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Sensor heads with the power meter electronics built into a USB stick housing, read by the Optical Parameter Monitor software on a PC. Photodiode, slim photodiode, integrating sphere and thermal head formats are offered, all post mountable.
Technical Specifications
| Parameter | Value |
|---|---|
| Photodiode heads | 400 to 1800 nm depending on model |
| Integrating sphere heads | 350 to 1700 nm; thermal head 190 nm to 20 micrometres |
| PM16-120 measurement range | 50 nW to 50 mW, resolution less than 1 nW |
| Linearity | plus or minus 0.5%; AD converter 24 bit |
| USB housing dimensions | 65 mm x 20 mm x 10 mm |
| Aperture thread | external SM1 (1.035"-40), 8-32 and M4 post tap |
