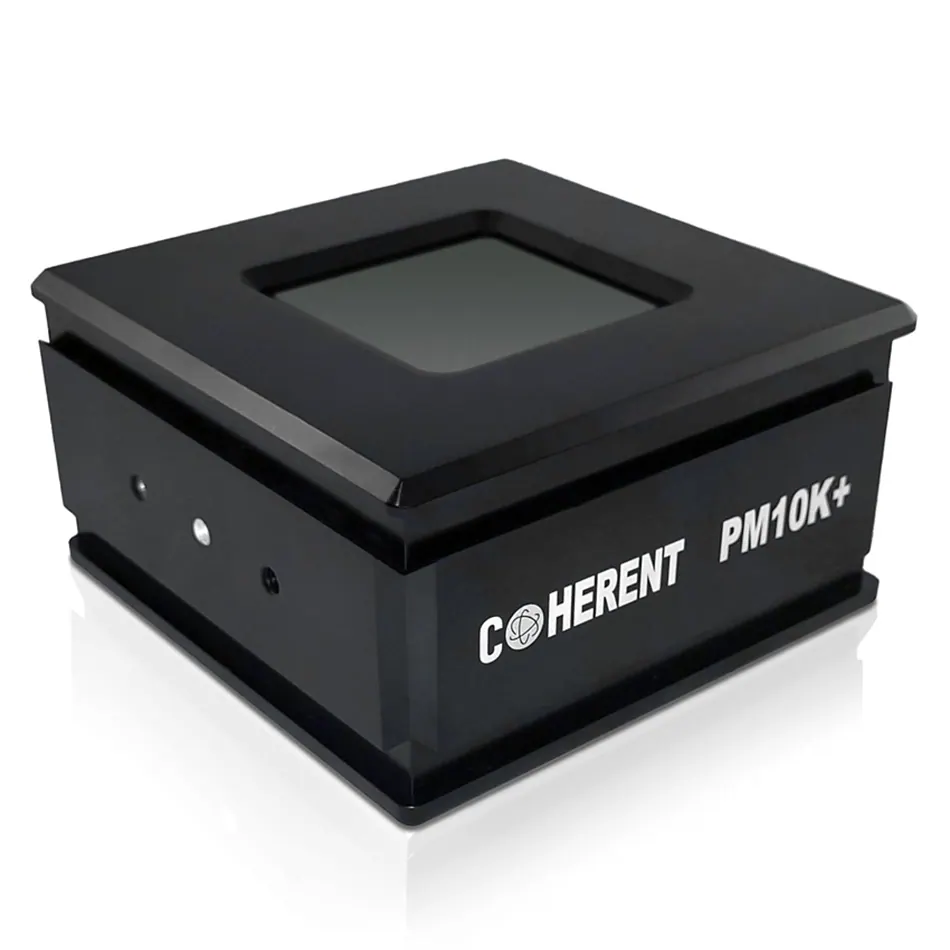

PM10K+ & PM15K+ Laser Power Sensors
Brand: Coherent | Category: Scientific & Laboratory Equipment
PM10K+ and PM15K+ are water cooled large area thermopile sensors for industrial lasers, measuring up to 20 kW in under five seconds. All three variants use the broadband BB+ absorber from 190 nm to 11 um and include a safety interlock.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 0.19 to 11 um |
| Power range | 100 to 10,000 W (PM10K+), 100 to 15,000 W (PM15K+) |
| Maximum intermittent power under 5 minutes | 12 kW (PM10K+), 20 kW (PM15K+) |
| Detector dimensions | 65 x 65 mm (PM10K+), 65 mm diameter (Backscatter Shield), 100 x 100 mm (PM15K+) |
| Response time 0 to 99 % | 3 s with speed-up on (PM10K+), 4.5 s (PM15K+) |
| Calibration uncertainty | +/-2 %, power linearity +/-1.5 % |
