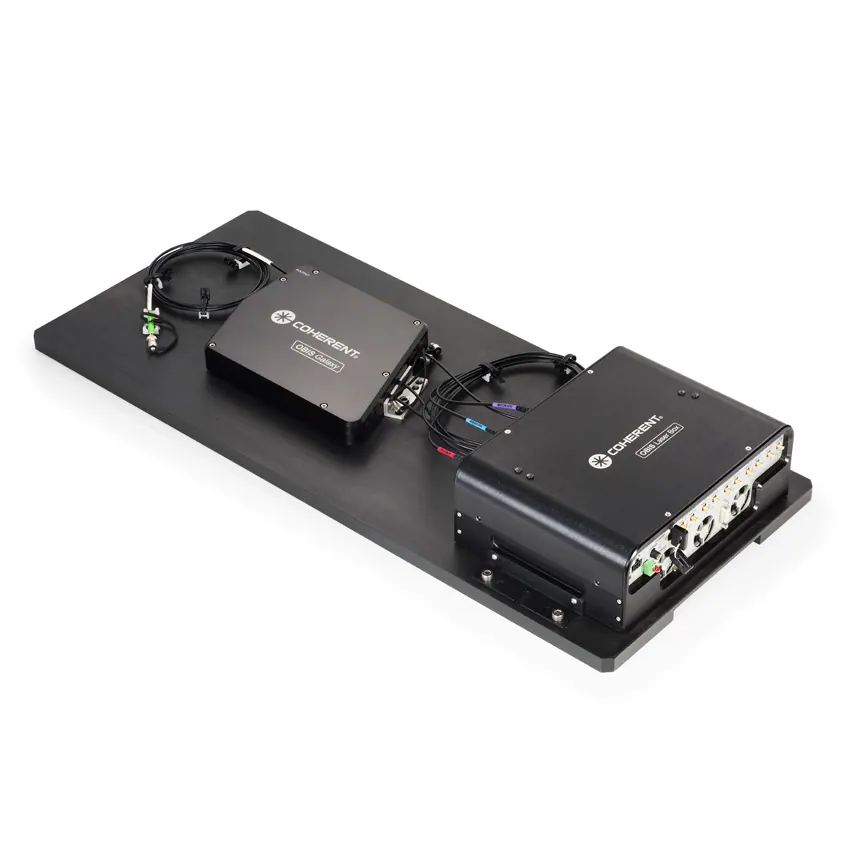

Galaxy Multi-Wavelength Laser Engine
Brand: Coherent | Category: Scientific & Laboratory Equipment
Galaxy is a modular laser engine that combines up to eight wavelengths into a single output fibre with no alignment needed. It works with OBIS and Sapphire fibre pigtailed lasers, and integrated systems come preloaded with three, four or five lasers plus a LaserBox.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Combines up to 8 lasers into a single output fiber |
| Available wavelengths | 405, 445 or 458, 473 or 488, 514, 532 or 561, 594 and 640 nm |
| 3-Laser System 1451749 | 100 mW at 488 nm, 80 mW at 561 nm, 75 mW at 640 nm |
| 4-Laser System 1446060 | adds 60 mW at 594 nm |
| 5-Laser System 2252231 | adds 80 mW at 532 nm |
| Output fiber connector | FC/APC or FC/PC8 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
