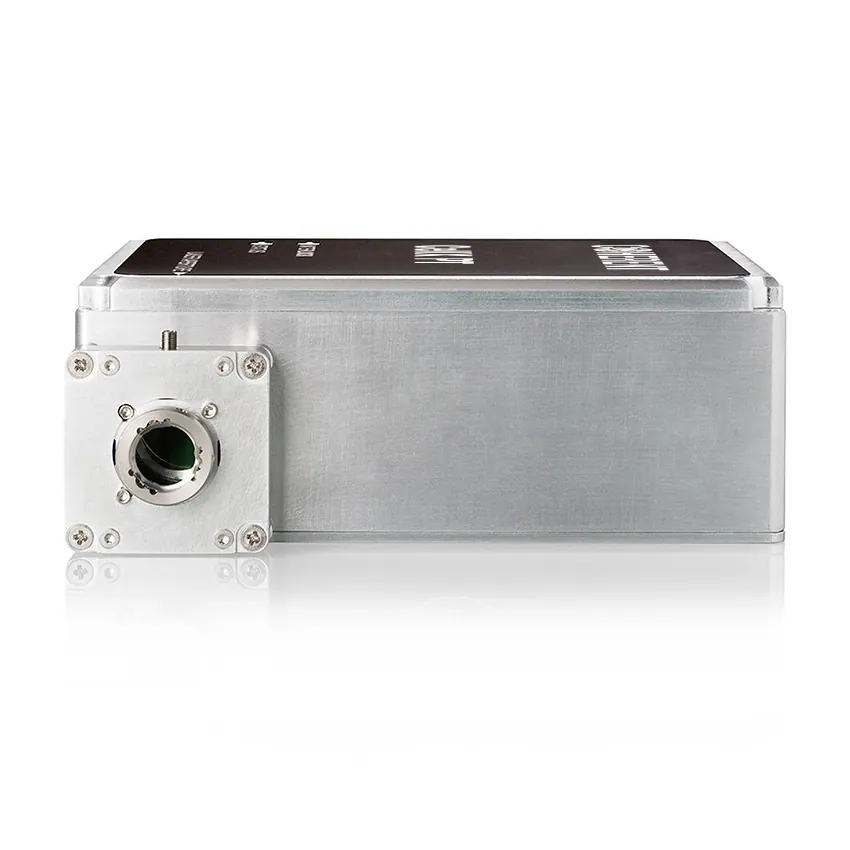

CellX PT Multi-Wavelength Laser Engine
Brand: Coherent | Category: Scientific & Laboratory Equipment
CellX PT is a permanently aligned laser engine for volume OEM use in flow cytometry and other bio-instrumentation. It carries up to four wavelengths with PermAlign beam delivery optics and produces a fixed pattern of focused stripes in a hermetically sealed housing.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelengths | 405, 488, 561 and 637 nm |
| Output power | 100 mW for each wavelength |
| Focused stripe size at 1/e2 | 8 x 80 um (vertical size x horizontal length) |
| Focused stripe spacing | 100 um vertical separation |
| Focused stripe profile | Gaussian, TEM00 on both axes |
| Specification | Developer's Kit includes power supply, power cord, OEM heat sink, fan-cooled heat sink and accessory kit |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
