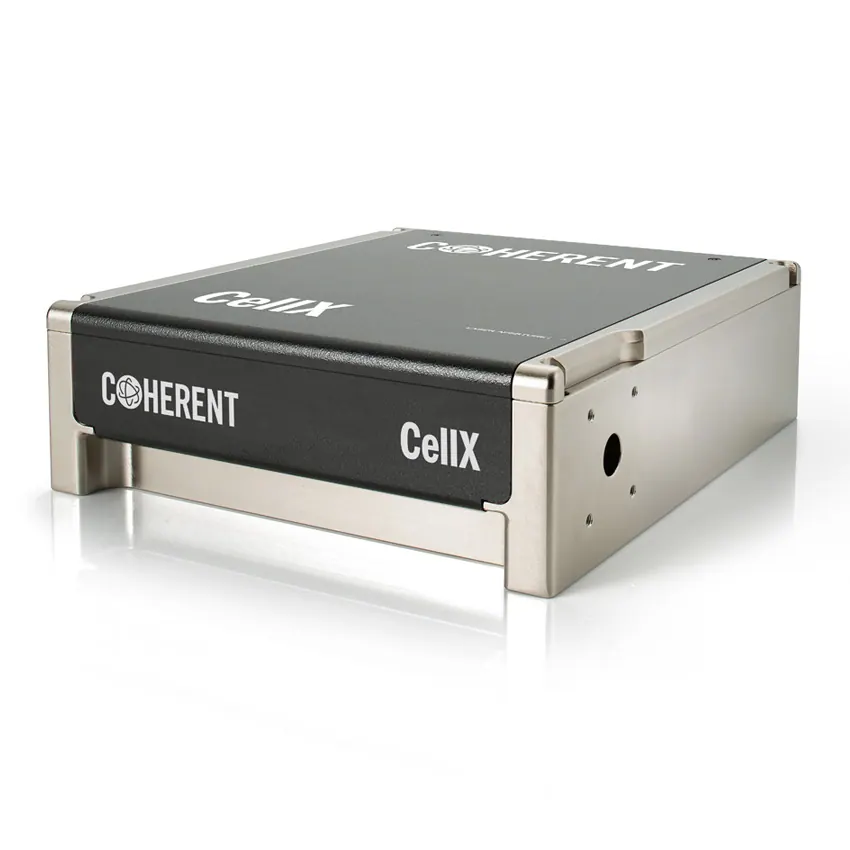

CellX Multi-Wavelength Laser Engine
Brand: Coherent | Category: Scientific & Laboratory Equipment
CellX combines up to four OBIS lasers into one engine with independently addressable outputs and user adjustable beam position and focus. It is built for flow cytometry, cell sorting and microscopy, with internal thermal management for stability.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelengths | 405, 488, 561 and 637 nm |
| Output power | up to 100 mW per wavelength |
| Beam diameter at 1/e2 | 2.6 mm at 405 nm, 3.0 mm at 488 nm, 3.5 mm at 561 nm, 4.5 mm at 637 nm |
| Beam divergence | 0.2 mrad full angle |
| Common beam diameter version | 0.7 mm at all wavelengths, divergence 1.5 mrad full angle |
| Fiber delivery options | FC/APC output connector or collimated beam fiber output |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
