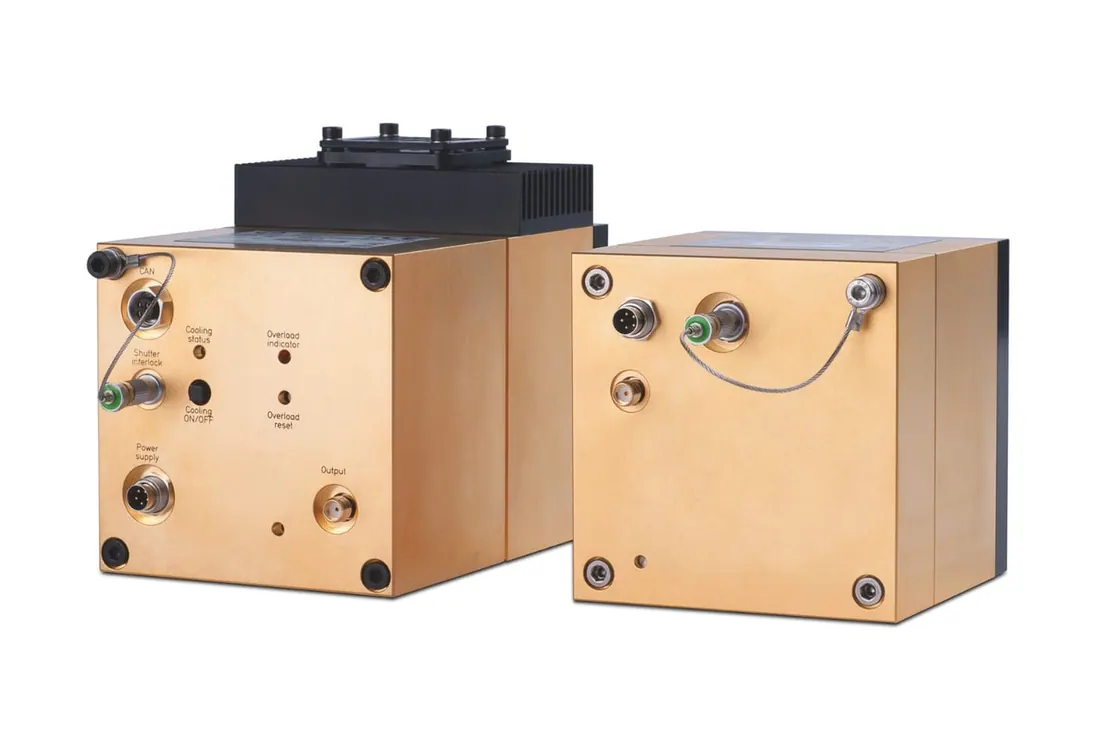

PMA Series
Brand: PicoQuant | Category: Nanotechnology
The PMA Series are integrated photomultiplier detector assemblies for time-correlated single photon counting. The PMA 175 covers 230 to 700 nm and the PMA 192 covers 230 to 920 nm, both with transit time spread below 180 ps. Cooled versions lower the dark count rate for work on weak signals.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 230 to 700 nm (PMA 175), 230 to 920 nm (PMA 192) |
| Dark counts (uncooled) | < 50 cps (PMA 175), < 10 000 cps (PMA 192) |
| Dark counts (cooled) | < 50 cps (PMA 175), < 1100 cps (PMA 192) |
| Transit time spread (FWHM) | < 180 ps |
| Recommended max. count rate | 5 MHz |
| Signal output | SMA female, 50 Ohms impedance, negative polarity |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about PicoQuant equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
