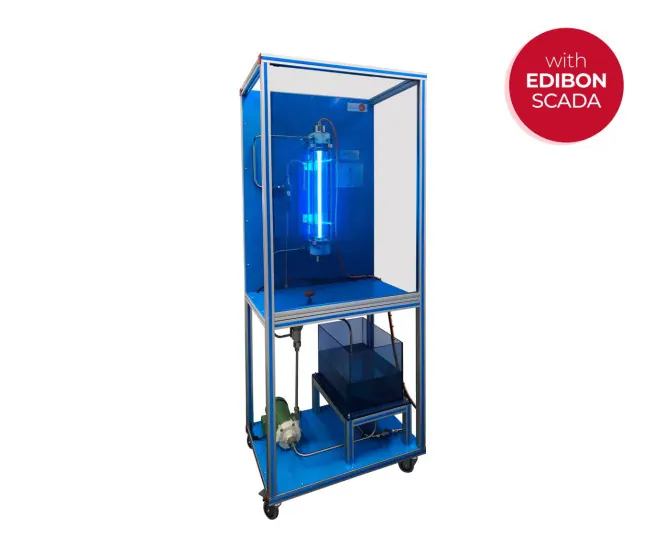

POAC: Computer Controlled Advanced Oxidation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An advanced oxidation unit that generates hydroxyl radicals by combining ultraviolet radiation with hydrogen peroxide. Raw water is dosed in a transparent tank and passed through the reactor, so students can measure the destruction of organic pollutants against dose, contact time and UV intensity.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum power | 120 W |
| Maximum height | 9 m |
| Diameter | 90 mm |
| Emitted wavelength | 254 nm |
| Maximum flow | 8 l/min |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Water & Wastewater Treatment Lab
- PPTAC/1: Computer Controlled Water Treatment Plant (filtration, adsorption, and ion exchange)
A small treatment plant that links depth filtration, activated carbon adsorption and ion exchange in a single line. Students follow raw water through each stage and measure turbidity, organic removal and conductivity to see what each operation contributes to the finished water.
- SPFC: Computer Controlled Sedimentation, Precipitation and Flocculation Unit
A unit for studying the physico-chemical treatment of water, covering chemical precipitation, flocculation and settling in one flow line. Students dose reagents, follow the formation of floc and measure the clarity of the treated water leaving the settling section.
- PPTAC/2: Computer Controlled Water Treatment Plant (filtration and ion exchange)
A treatment plant that combines depth filtration with ion exchange. It is the simpler of the two EDIBON water treatment plants and is used to teach solids removal followed by demineralisation, including resin exhaustion and regeneration.
