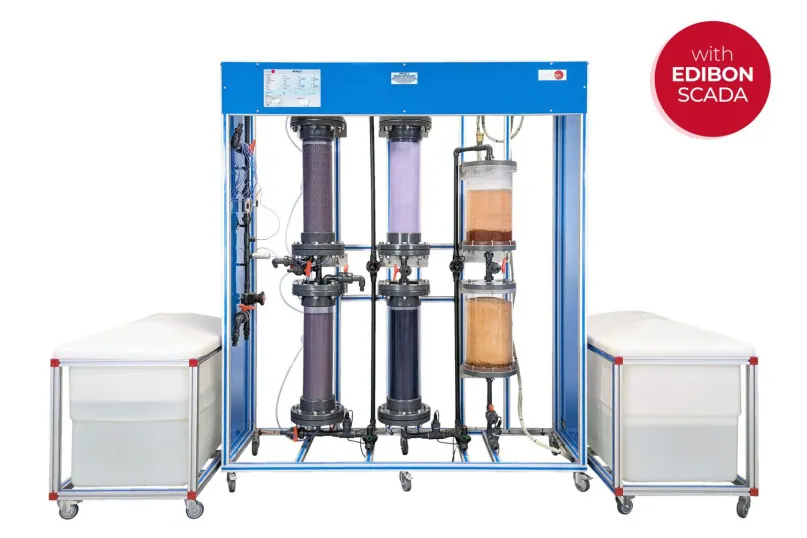

PPTAC/1: Computer Controlled Water Treatment Plant (filtration, adsorption, and ion exchange)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A small treatment plant that links depth filtration, activated carbon adsorption and ion exchange in a single line. Students follow raw water through each stage and measure turbidity, organic removal and conductivity to see what each operation contributes to the finished water.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1100 x 620 x 850 mm approx |
| Weight | 40 kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
