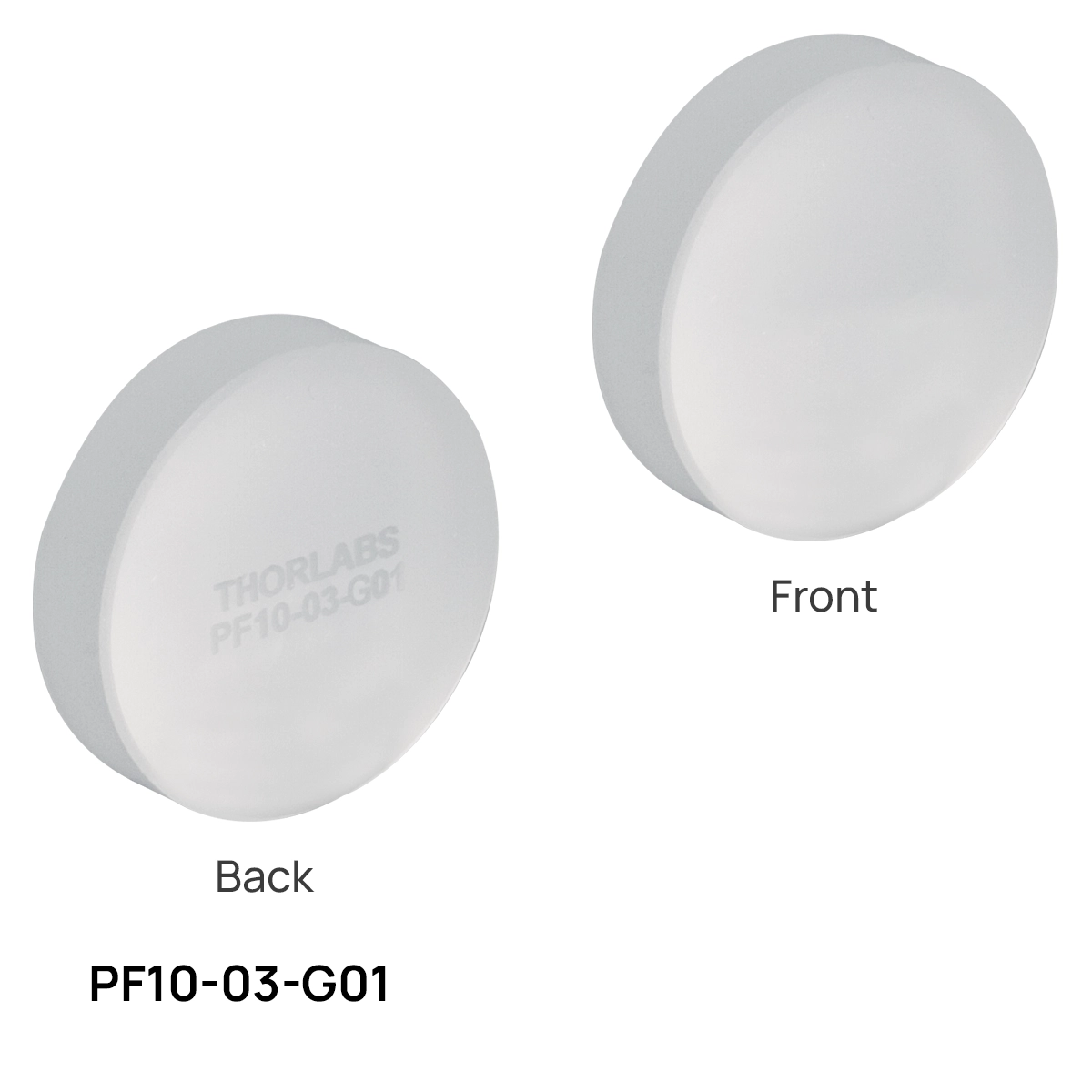

Protected Aluminum Mirrors (PF Series, G01 Coating)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
General purpose broadband mirrors with an aluminium coating under a silicon dioxide protective layer. They tarnish less readily than protected silver in humid conditions, which makes them a practical teaching laboratory mirror.
Technical Specifications
| Parameter | Value |
|---|---|
| Average reflectance | greater than 90% from 450 nm to 2 micrometres |
| Average reflectance | greater than 95% from 2 to 20 micrometres |
| Surface flatness | lambda/10, lambda/8 for the 2" x 2" square |
| Surface quality | 40-20 scratch-dig |
| Specification | Round and square versions stocked, packs of ten round mirrors available |
| Specification | 19 mm diameter version designed to fit Polaris fixed optic mounts |
