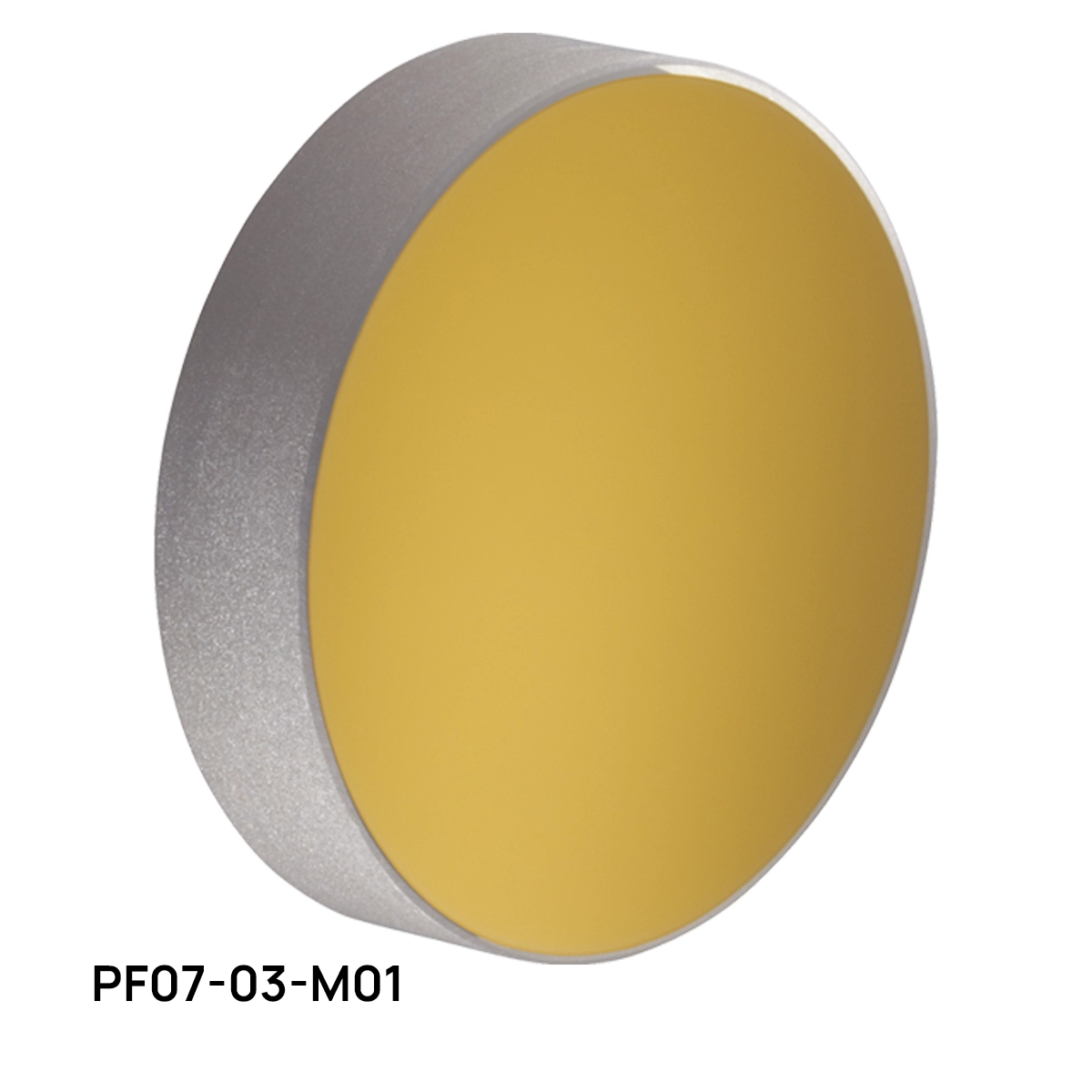

Protected Gold Mirrors (PF Series, M01 Coating)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Gold coated mirrors with a protective dielectric overcoat, intended for infrared work where reflectance must stay high well beyond 2 micrometres. Reflectance is relatively insensitive to angle of incidence, as with other metallic coatings.
Technical Specifications
| Parameter | Value |
|---|---|
| Average reflectance | greater than 96% from 800 nm to 20 micrometres |
| Surface flatness | lambda/10, lambda/8 for the 2" square |
| Round diameters | 7 mm, 1/2", 19 mm, 1" and 2" |
| Square sizes | 1/2", 1" and 2" |
| Specification | Protective dielectric overcoat over the gold layer |
| Specification | Packs of ten round mirrors available |
