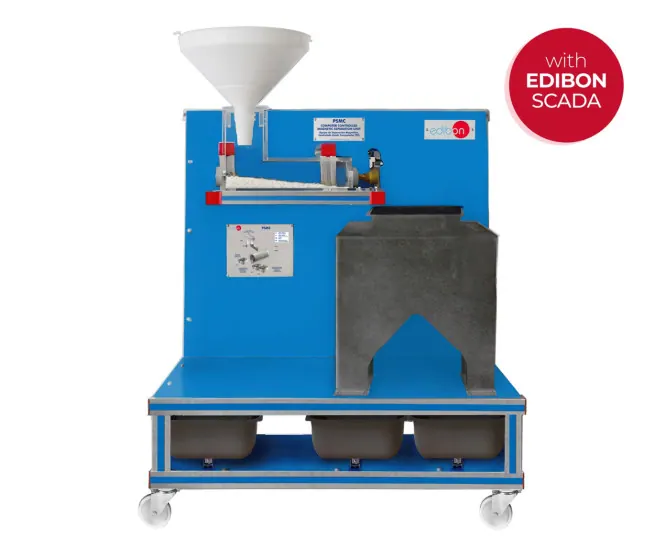

PSMC: Computer Controlled Magnetic Separation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A rotating magnetic drum separator for sorting a feed of mixed solids according to their magnetic susceptibility. It shows how drum speed, feed rate and splitter position change the grade and recovery of the magnetic fraction, which is the basic experiment in mineral separation teaching.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity of the hopper | 25 l |
| Motor power | 250 W |
| Maximum thickness of the particles | 20 mm |
| Diameter | 220 mm |
| Tank for the feed material, capacity | 20 l |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
