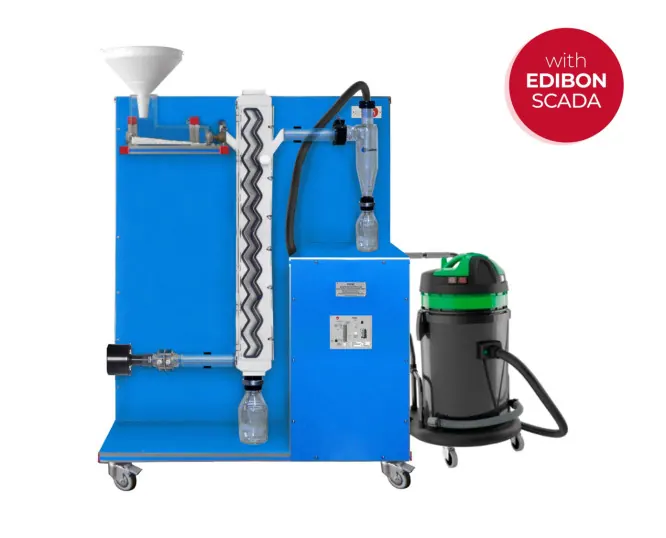

PSNC: Computer Controlled Gas Flow Classification Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A zigzag gravity air classifier that separates a mixture of solids by particle size using an upward air stream. Fine and coarse fractions are collected separately, allowing students to relate the cut point to air velocity and particle properties in dry classification work.
Technical Specifications
| Parameter | Value |
|---|---|
| Approximate height | 1500 mm |
| Area of the section | 40 x 50 mm |
| Hopper capacity | 5 Kg |
| Maximum mass flow | 50 Kg/h |
| Diameter | 160 mm |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
