Q60
Brand: Coherent | Category: Scientific & Laboratory Equipment

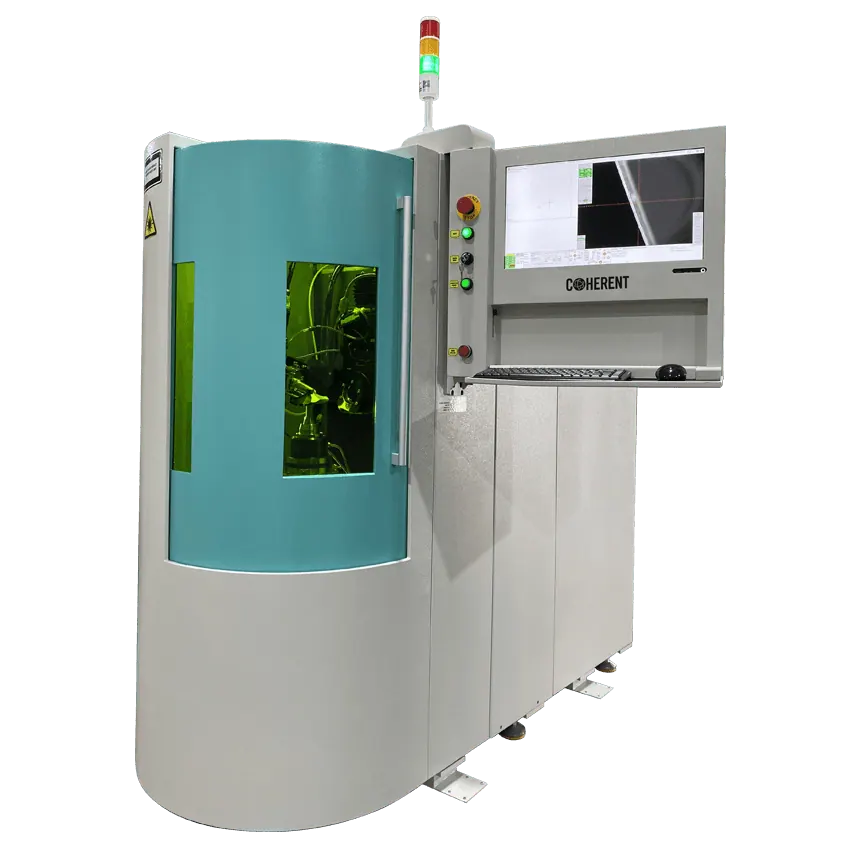

The Q60 cuts polycrystalline diamond, cubic boron nitride and carbides with a 600 W fibre laser. It is offered as a three axis Q60-3x plus four and five axis models, all using coaxial video and machine vision monitoring with eMicro control software.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser | 600 W fiber laser, wavelength 1060 nm |
| Q60-3x | 3 cutting axes, XY table 300 x 300 mm, XY fixture area 250 x 300 mm |
| Q60-4x and Q60-5x | 4 and 5 cutting axes with rotary table, XY fixture area 250 x 100 mm |
| Maximum traverse speed | 50 mm/s |
| Overall dimensions (W x D x H) | 940 x 1680 x 1770 mm (Q60-3x) |
| Overall dimensions (W x D x H) | 1300 x 2050 x 1800 mm (Q60-4x and Q60-5x) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
