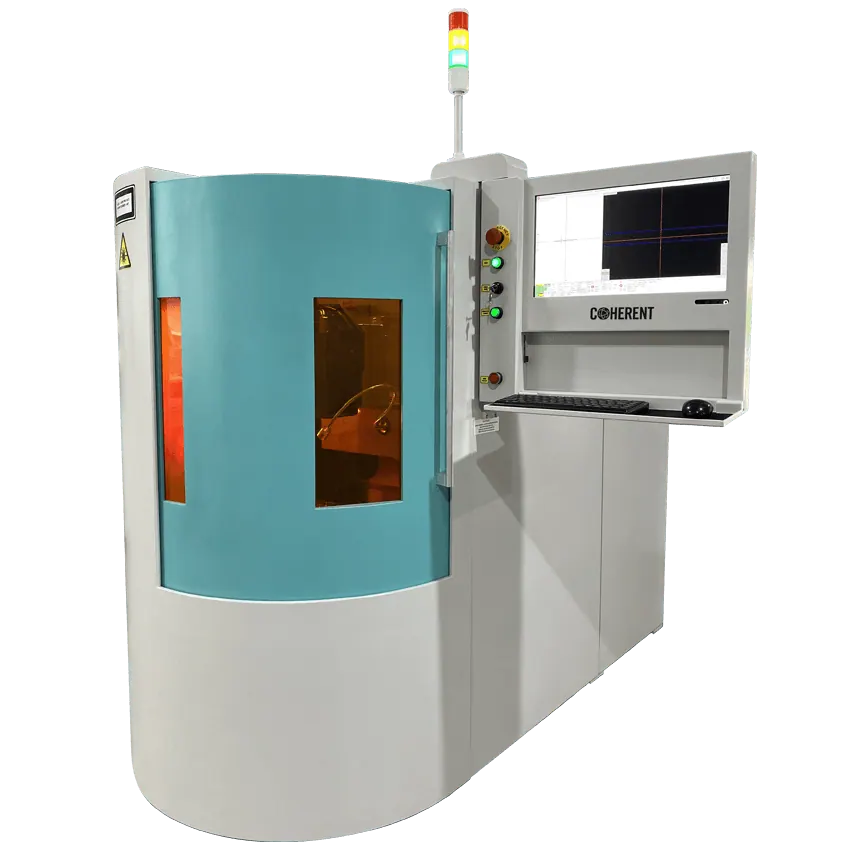

eM15 Monocrystalline Diamond Cutting System
Brand: Coherent | Category: Scientific & Laboratory Equipment
The eM15 cuts natural and synthetic monocrystalline diamond and CVD wafers with a pulsed green laser, giving deep cuts with low taper. It replaces slow sawing for windows, heat sinks, precision tooling, acoustic wave devices and jewellery.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser | 15 W green (532 nm) DPSS laser |
| Model options | 3 axis, 4 axis and 5 axis |
| Maximum XY working area | 200 x 200 mm |
| Fixture area | 150 x 150 mm, D50 x 100 mm on 4 and 5 axis models |
| Maximum XY scan speed | 2000 mm/min |
| Typical application | 2D (XY) cutting, shaped (3D) cutting on 4 and 5 axis models |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
