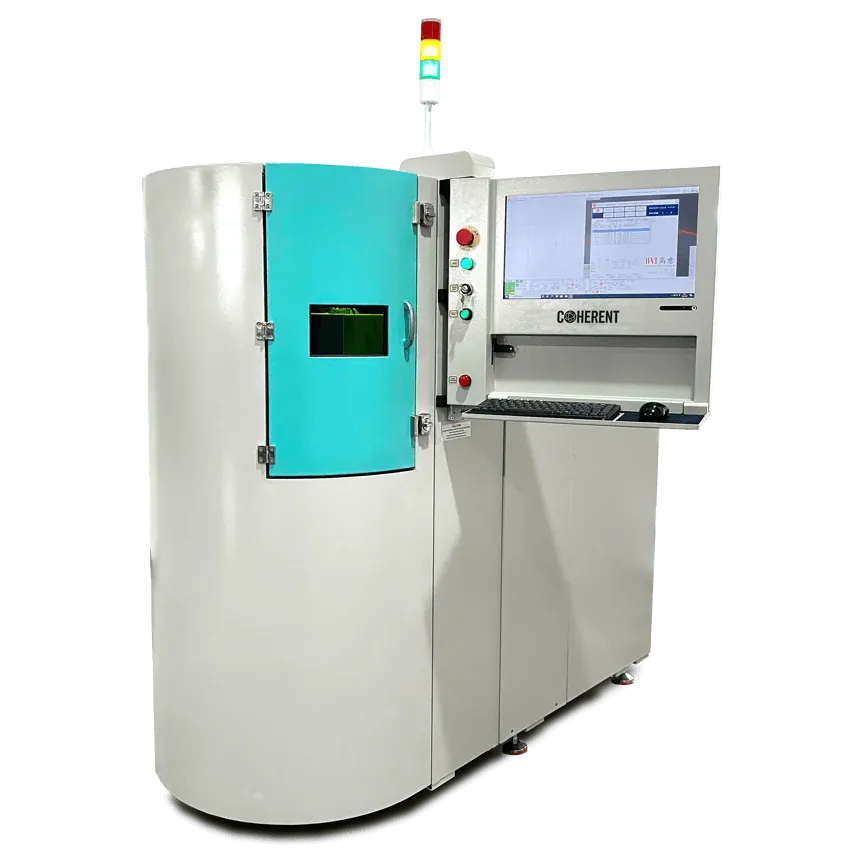

L45/L60 PCD Surface Lapping/Shaping Tools
Brand: Coherent | Category: Scientific & Laboratory Equipment
The L45 and L60 are laser tools for lapping and shaping polycrystalline diamond disks used in cutting tools and in oil and gas parts. The L45 handles fine and coarse lapping, while the L60 adds beveling, rounding and profiling with no need for pre-lapping.
Technical Specifications
| Parameter | Value |
|---|---|
| L45 processes supported | fine and coarse lapping |
| L45 lapping precision | 10 um, surface accuracy 0.2 um (Ra) |
| L45 lapping speed | >1 mm/hour for 60 mm diameter |
| L45 capacity | 6 stack positions, 25 disks at 5 mm thick or 40 disks at 3 mm thick |
| L60 processes supported | lapping, beveling, rounding, profiling |
| L60 beveling speed | 0.5 mm per 4.5 minutes, 100 pocket positions, 1613 parts total |
