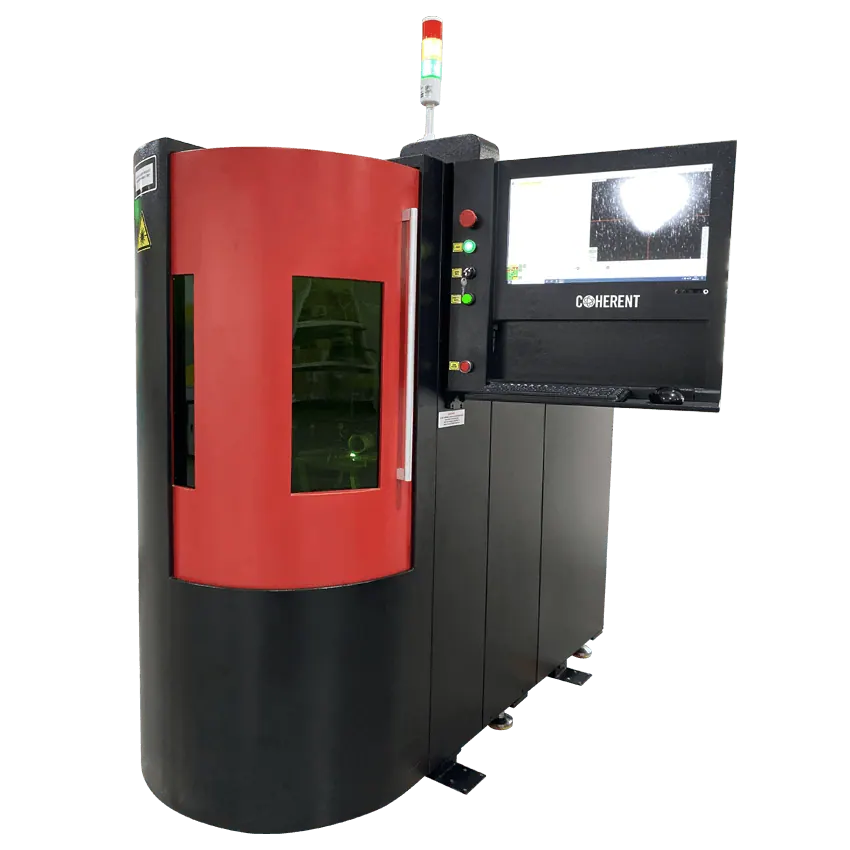

eM100 Micromachining System
Brand: Coherent | Category: Scientific & Laboratory Equipment
The eM100 is a micromachining system for shaping fine details in superhard materials such as tungsten carbide, advanced ceramics, silicon carbide and boron nitrides. It uses a 100 W infrared nanosecond fibre laser with galvo scanning, and can also cut thinner materials and mark surfaces.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser | 100 W infrared (1060 nm) nanosecond fiber laser |
| Model options | 3 axis, 4 axis and 5 axis |
| Maximum XY working area | 300 x 300 mm |
| Fixture area | 240 x 300 mm, 100 x 100 mm on turning table models |
| Optional turning table | 60 degrees/60 rpm |
| Maximum XY scan speed | 3000 mm/min |
