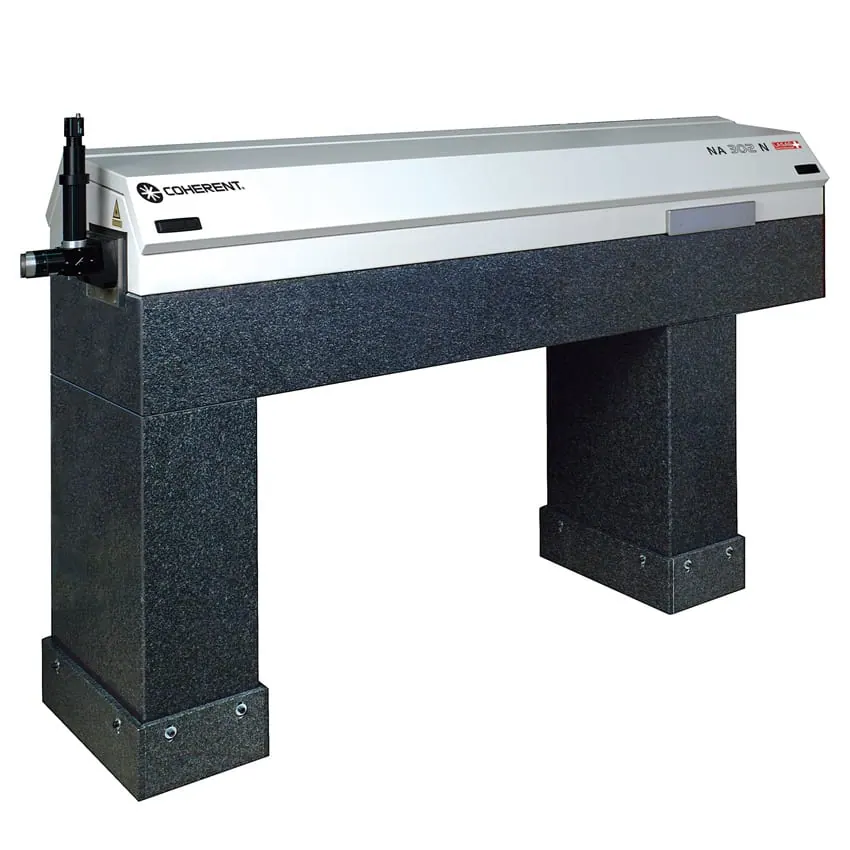

NA Needle Drilling System
Brand: Coherent | Category: Scientific & Laboratory Equipment
The NA Needle Drilling System drills blind holes in surgical suture needles. Each hole is drilled with a single shaped long pulse, giving smooth features and minimal thermal damage. It is optimised for holes of 50 to 750 um diameter at aspect ratios as high as 10:1.
Technical Specifications
| Parameter | Value |
|---|---|
| NA 200 N | hole diameter 60 to 330 um, pulse rate 0.8 to 3 Hz |
| NA 302 N | hole diameter 120 to 470 um, pulse rate 0.8 to 3 Hz |
| NA 502 N | hole diameter 320 to 750 um, pulse rate 0.8 to 2 Hz |
| Optimized for holes ranging from 50 to 750 um diameter, aspect ratios as high as 10 | 1 |
| Specification | Needles as small as 160 um can be produced |
