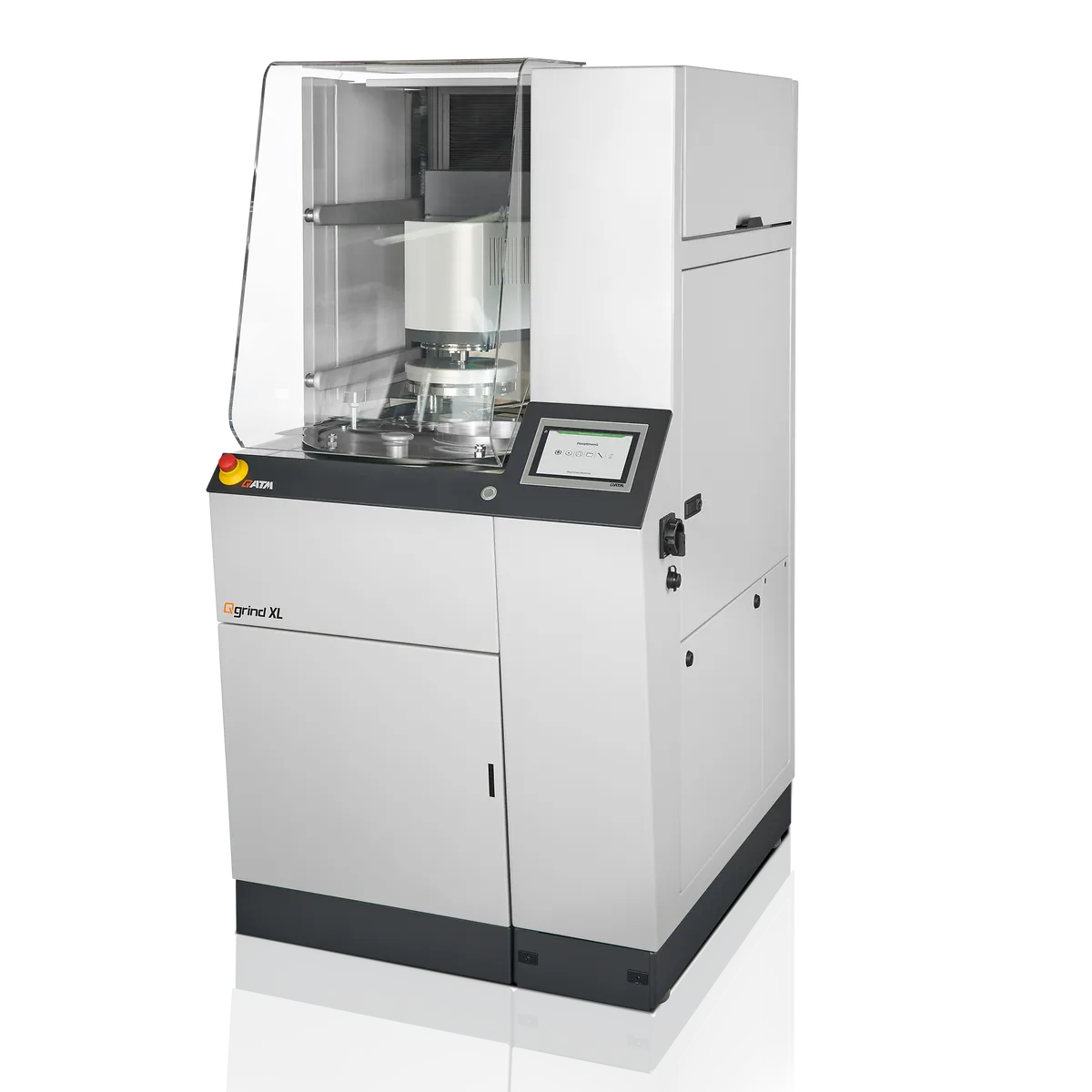

Qgrind XL: Planar Grinding Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Automatic planar grinding machine for the first, heavy removal step in specimen preparation. A ForceControl function measures removal electronically so the depth ground away is reproducible, and different grinding modes let the machine be set for maximum removal or for surface quality.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Speed of grinding stone | variable (1000 - 2000 rpm) |
| Sample holder | Ø 160 - 204 mm |
| Speed of sample holder | variable (30 - 160 rpm) |
| Sample holder pressing force (central) | 50 - 750 N |
| Removal measurement | ±0.1 mm display accuracy at 1 mm removal |
| Removal range | 0.1 mm - 10 mm |
| Drive power grinding stone | 4 kW (S1 operation) |
| Drive power sample holder | 0.75 kW (S1 operation) |
| Connection power | 9 kVA |
| Power connection | 400 V / 50 Hz (3Ph / PE), 480 V / 60 Hz (3Ph / PE), 220 V / 60 Hz (3Ph / PE) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
