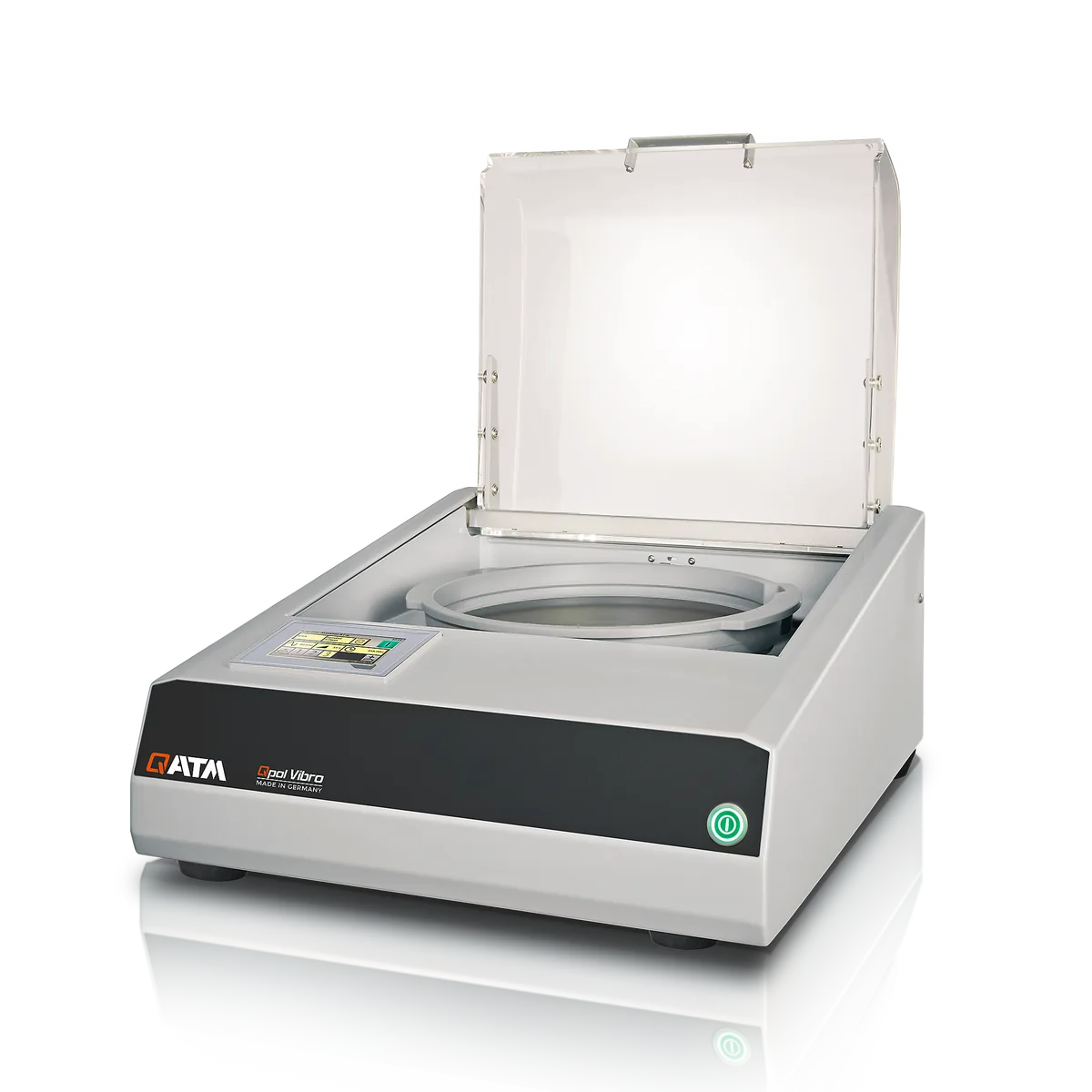

Qpol Vibro: Vibratory Polisher
Brand: QATM | Category: Scientific & Laboratory Equipment
Vibratory polisher that produces specimen surfaces with almost no residual deformation, by letting the sample move under its own weight on a vibrating cloth rather than being pressed against it. That matters for electron backscatter diffraction, atomic force microscopy and nanoindentation, where a deformed layer would mask the result.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Vibration frequency | 60 - 120 Hz, automatically regulated |
| Ambient temperature | 10 - 40 °C |
| Power connection | 220 - 240 V, 50/60 Hz (1 Ph/N/PE) ; 100 - 120 V, 50/60 Hz (1 Ph/N/PE) |
| Drive power | 135 VA |
| Inner diameter of the tub | Ø 308 mm |
| Weight (depending on equipment) | ~ 45 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
