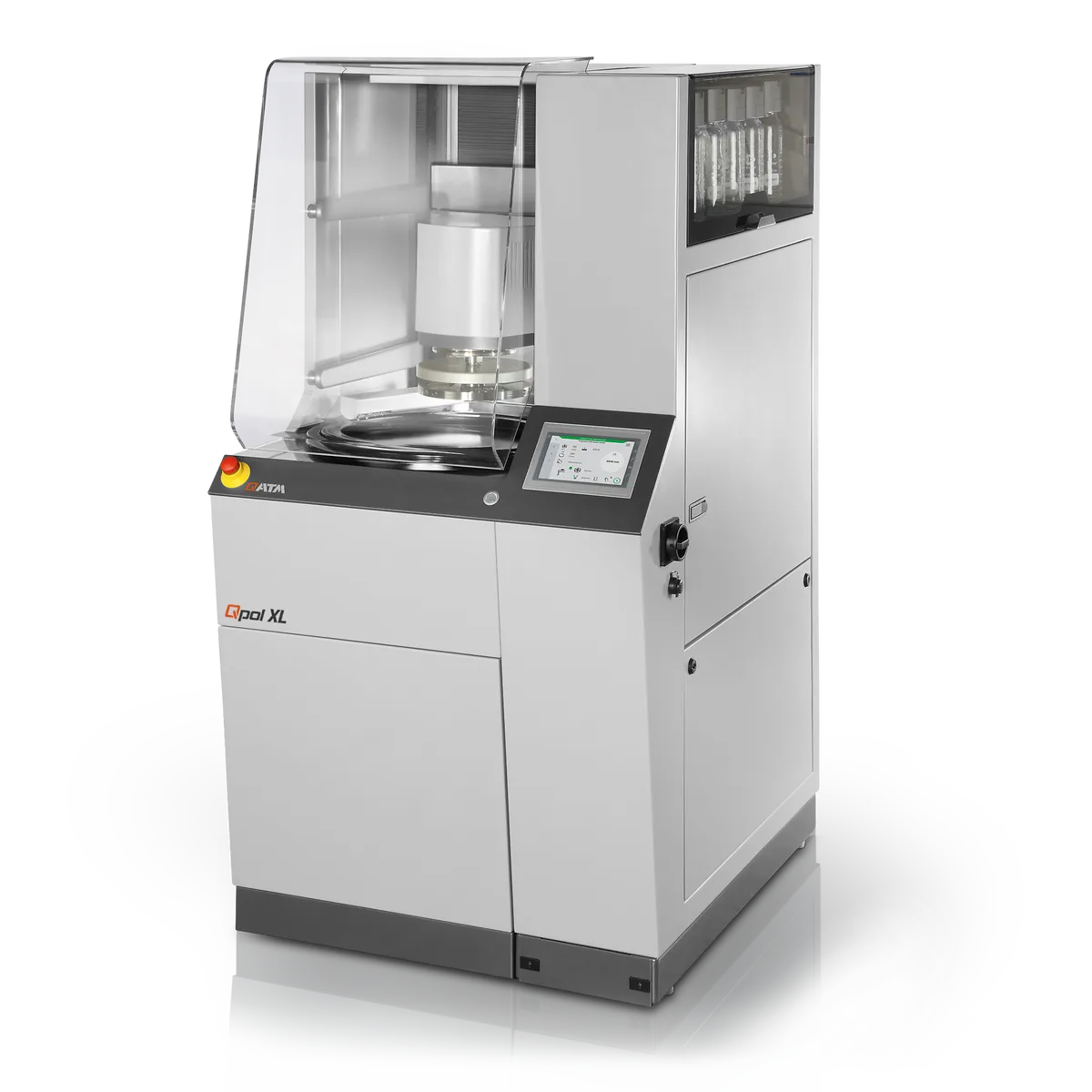

Qpol XL: Grinding and Polishing Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Large format grinding and polishing machine taking 300 mm and 350 mm working wheels and sample holders from 159 mm to 204 mm diameter. Both wheel and holder speeds are variable, which allows the removal rate and surface finish to be set independently.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Speed working wheel | variable (50 – 600 rpm) |
| Sample holder | Ø 159 - 204 mm |
| Speed sample holder | variable (50 – 350 rpm) |
| Central pressure | 50 – 750 N |
| Drive power working wheel | 2.2 kW (S1 operation) |
| Drive power head | 0.75 kW (S1 operation) resp. 1.1 kW (S3 operation) |
| Connection power | 6 kVA |
| Power connection | 400 V / 50 Hz (3Ph / PE), 480 V / 60 Hz (3Ph / PE), 220 V / 60 Hz (3Ph / PE) |
| Weight (depending on configuration) | ~ 420 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
