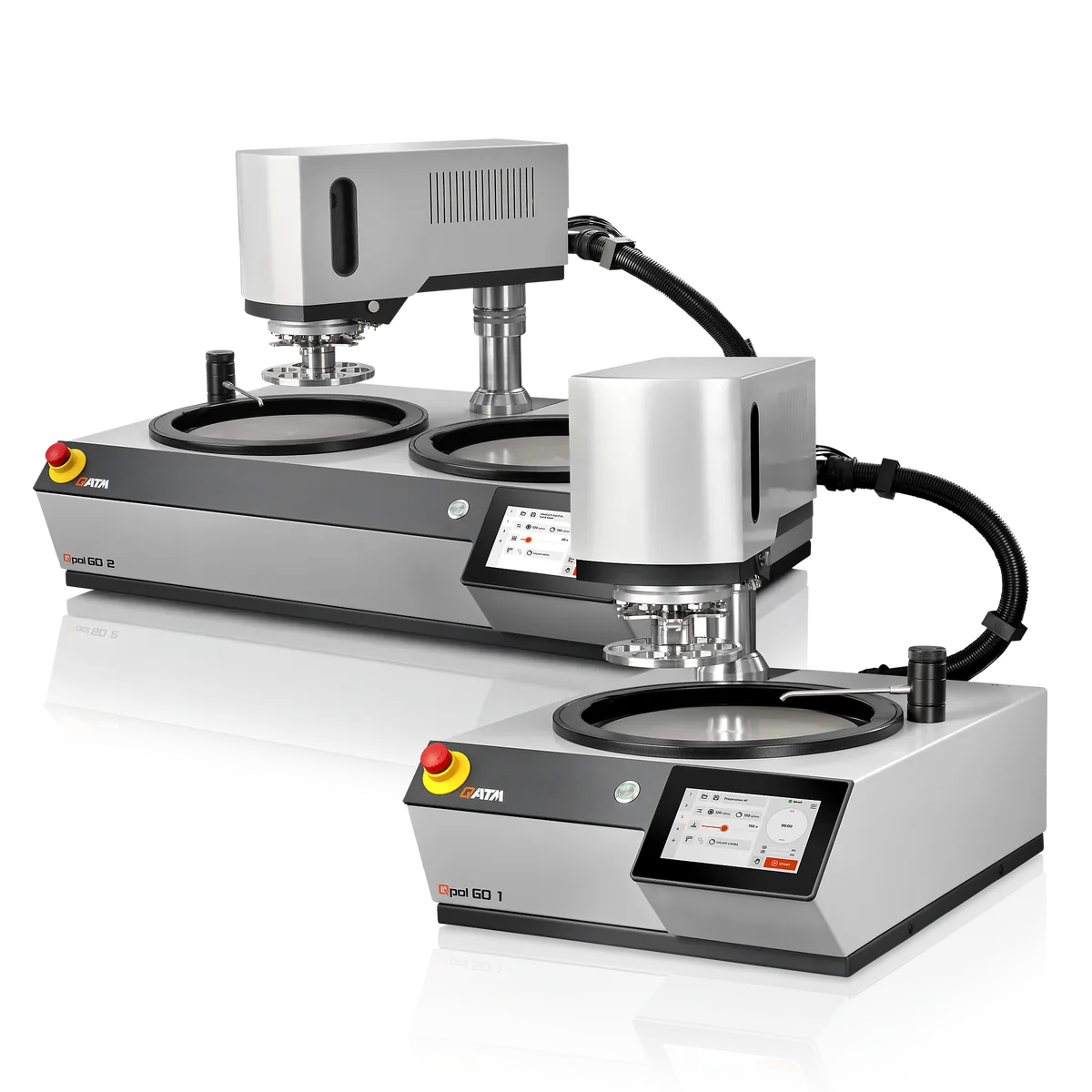

Qpol GO 1 / GO 2: Grinding and Polishing Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Automatic single wheel (GO 1) and twin wheel (GO 2) grinding and polishing machines that can run in single pressure or central pressure mode. Single pressure loads each specimen individually, which suits mixed hardness samples; central pressure loads the whole holder, which is faster for identical specimens.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Parameter | Qpol GO 1 | Qpol GO 2 |
|---|---|---|
| Working-wheel arrangement | Single wheel | Twin wheel |
| Working wheels | Ø 200/250/300 mm | Ø 200/250/300 mm |
| Number of samples | Single pressure: 1 - 6 samples, Ø 40 mm ; Central pressure: 1 - 5 samples, Ø 40 mm | Single pressure: 1 - 6 samples, Ø 40 mm ; Central pressure: 1 - 5 samples, Ø 40 mm |
| Contact force | Single pressure: variable, 5 - 80 N ; Central pressure: variable, 20 - 350 N | Single pressure: variable, 5 - 80 N ; Central pressure: variable, 20 - 350 N |
| Speed (grinding machine) | 30 - 600 rpm, continuously variable | 30 - 600 rpm, continuously variable |
| Rotational speed (grinding head) | 30 - 160 min-1 | 30 - 160 min-1 |
| B x H x T | 511 x 610 x 756 mm | 901 x 610 x 749 mm |
| Weight (depending on equipment) | ~ 65 kg | ~ 80 kg |
Manufacturer catalogue checked 2026-09-29.
The manufacturer publishes separate GO 1 and GO 2 tables. Dimensions and weights refer to the named configuration; final weight depends on equipment. Single-pressure and central-pressure capacities are distinct. Confirm the holders, dosing equipment and electrical supply in the quotation.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
