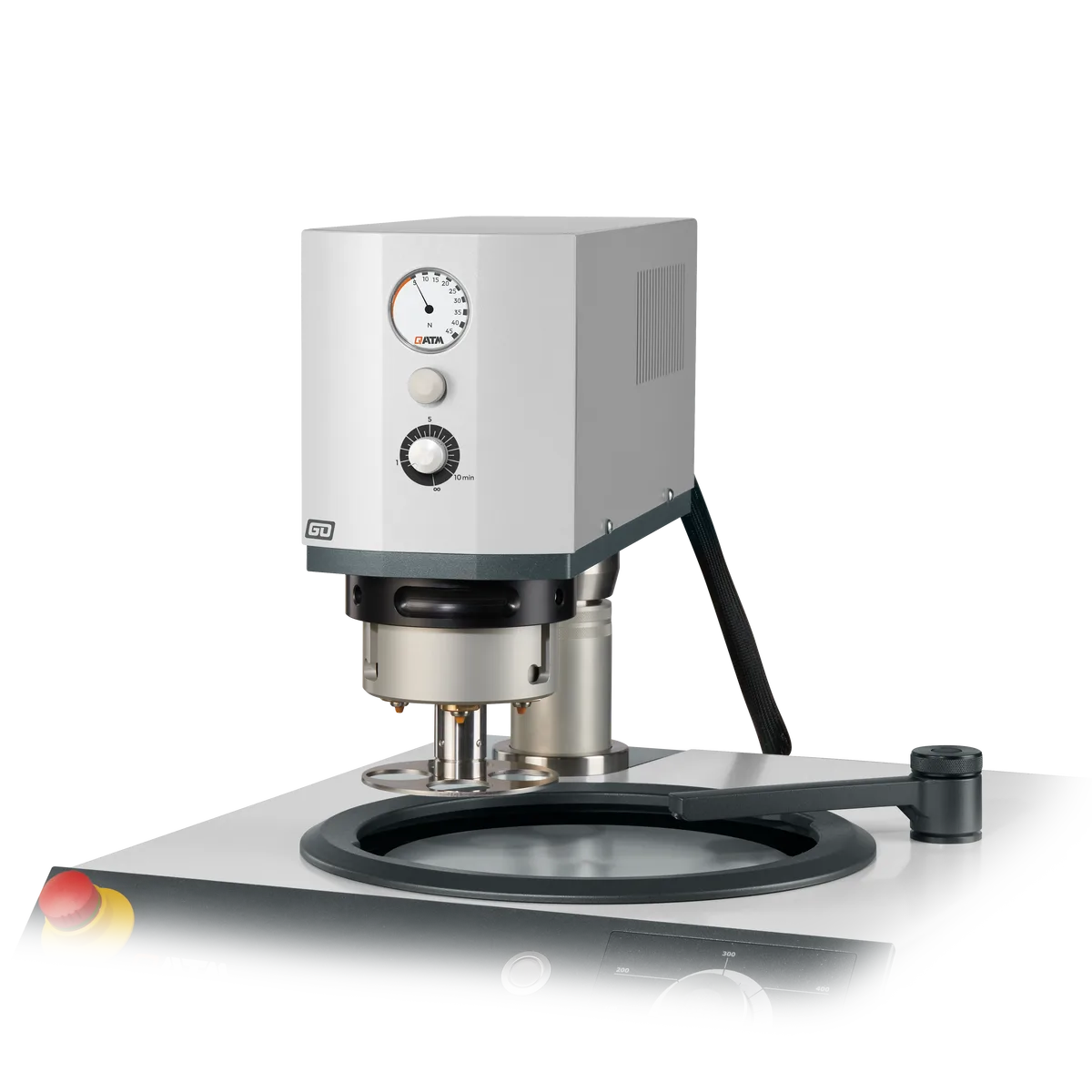

Qpol GO: Grinding and Polishing Head
Brand: QATM | Category: Scientific & Laboratory Equipment
Grinding and polishing head that converts a manual Qpol machine into a semi-automatic one. Single pressure and preparation time are set with rotary controls on the head itself, and the working area is lit and left visible by the slim housing.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Samples under single pressure | 1–4 samples, Ø40 mm |
| Sample holder | Ø120 mm |
| Individual pressing force | 5–45 N, variable |
| Head speed | 150 min⁻¹ |
| Head drive power | 60 W |
| Head weight | 18.5 kg |
QATM catalogue, printed page 3.25, for retrofit head A5631000. These are head specifications, not the complete Qpol GO 1 / GO 2 machines. Confirm compatibility with the installed Qpol 250/300 M grinder. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Materials Testing Lab
- Qpol GO 1 / GO 2: Grinding and Polishing Machine
Automatic single wheel (GO 1) and twin wheel (GO 2) grinding and polishing machines that can run in single pressure or central pressure mode. Single pressure loads each specimen individually, which suits mixed hardness samples; central pressure loads the whole holder, which is faster for identical specimens.
- Qpol M1 / M2: Manual Grinding and Polishing Machine
Manual single wheel (M1) and twin wheel (M2) grinding and polishing machines for laboratories preparing specimens by hand. They accept the Qpol GO head as a retrofit, so a laboratory can start manual and add semi-automatic preparation later without replacing the base machine.
- Qpol PLUS 1 / PLUS 2: Grinding and Polishing Machine
Automatic single wheel (PLUS 1) and twin wheel (PLUS 2) grinding and polishing machines with a higher performance head than the GO series, taking sample holders up to 185 mm diameter in central pressure mode. Specimens up to 50 mm diameter can be prepared, six at a time under single pressure.
