QUS: Base and Service Unit for QR
Brand: EDIBON | Category: Scientific & Laboratory Equipment

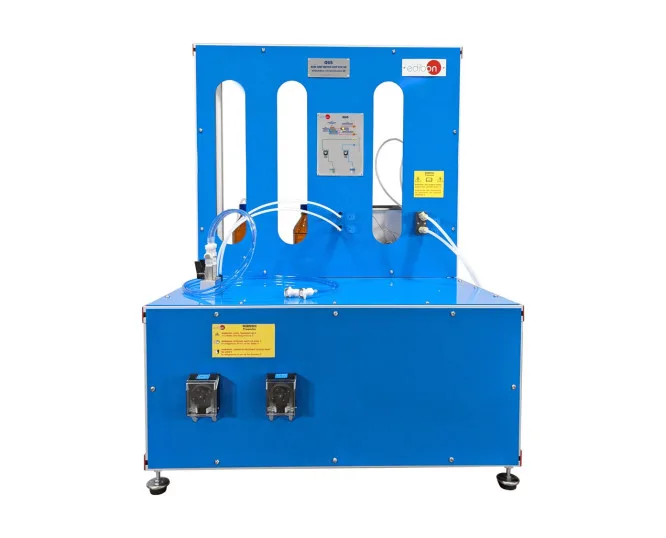

The elements needed to operate the different reactors are supplied by the Service Unit for QR, "QUS".
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Reagent tanks | 2 × 1 L, Pyrex glass |
| Peristaltic dosing pumps | 2, variable speed |
| Standard dosing flow | Up to 3 L/h |
| Alternative dosing arrangement | Up to 10 L/h; configuration must be specified |
| Thermostatic bath capacity | 6 L |
| Thermostatisation-water pump | 3 L/min |
| Temperature sensors | 3, J type |
| Required separately | At least one QR reactor module |
QUS service-unit specifications. Dosing flow is in L/h; the separate bath-water circulation pump is rated in L/min. Reactor capacity and operating limits belong to the selected reactor, which is not included in the base-unit specification. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Chemical engineering experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
