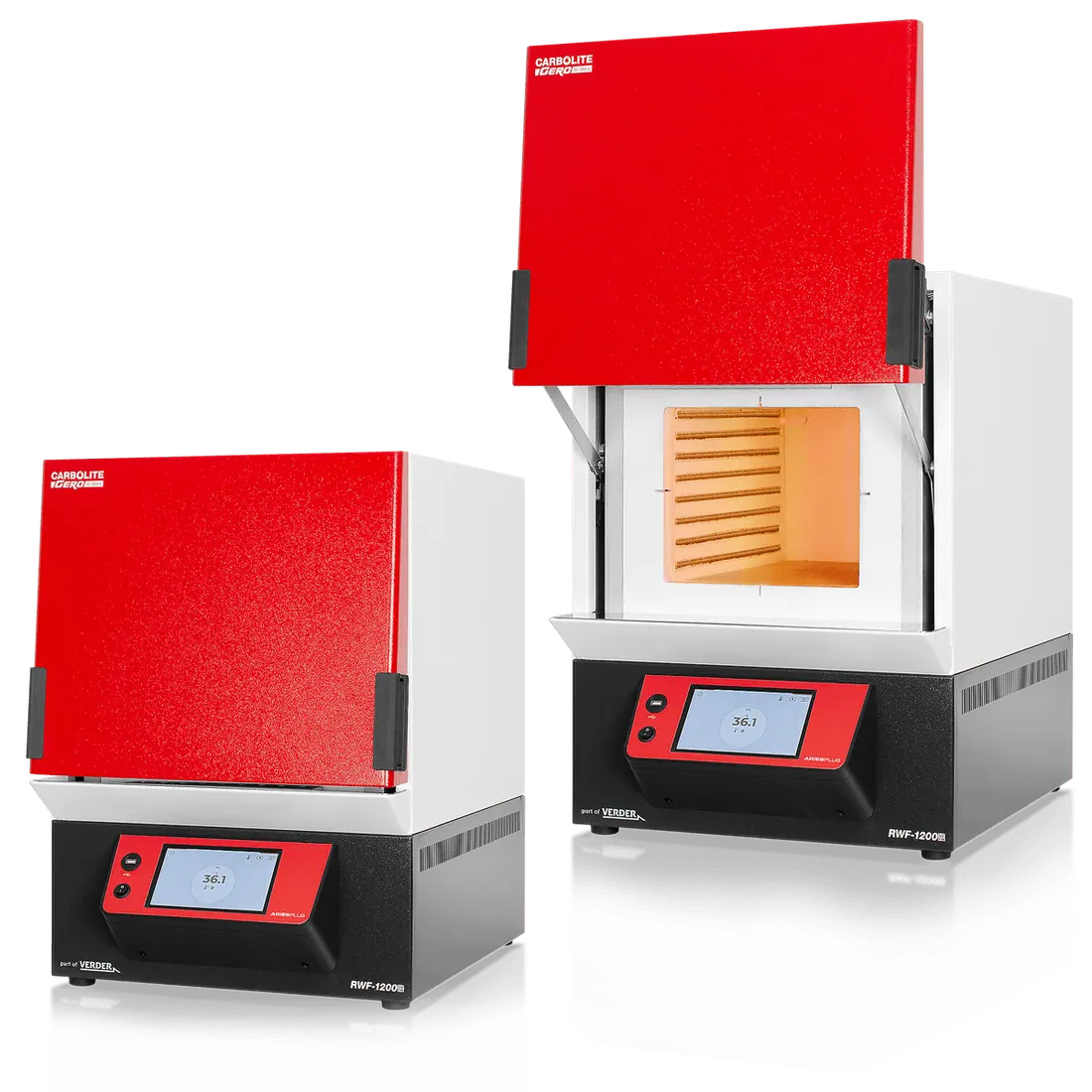

Rapid Heating Chamber Furnace RWF
Brand: Carbolite Gero | Category: Nanotechnology
A chamber furnace range designed for fast thermal response, reaching 1000 deg C from ambient in as little as 10 minutes. Free radiating wire elements work with low thermal mass insulation to give rapid heating and cooling in three chamber sizes.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1100 or 1200 deg C |
| Chamber volumes | 5, 13 or 23 litres |
| Specification | Ambient to 1000 deg C in as little as 10 minutes |
| RWF 11/5 | heat-up time 10 minutes, 2750 W maximum power, 28 kg |
| RWF 11/23 | heat-up time 13 minutes, 9100 W maximum power, 65 kg |
| Specification | Programmable EPC3016P1 controller |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
