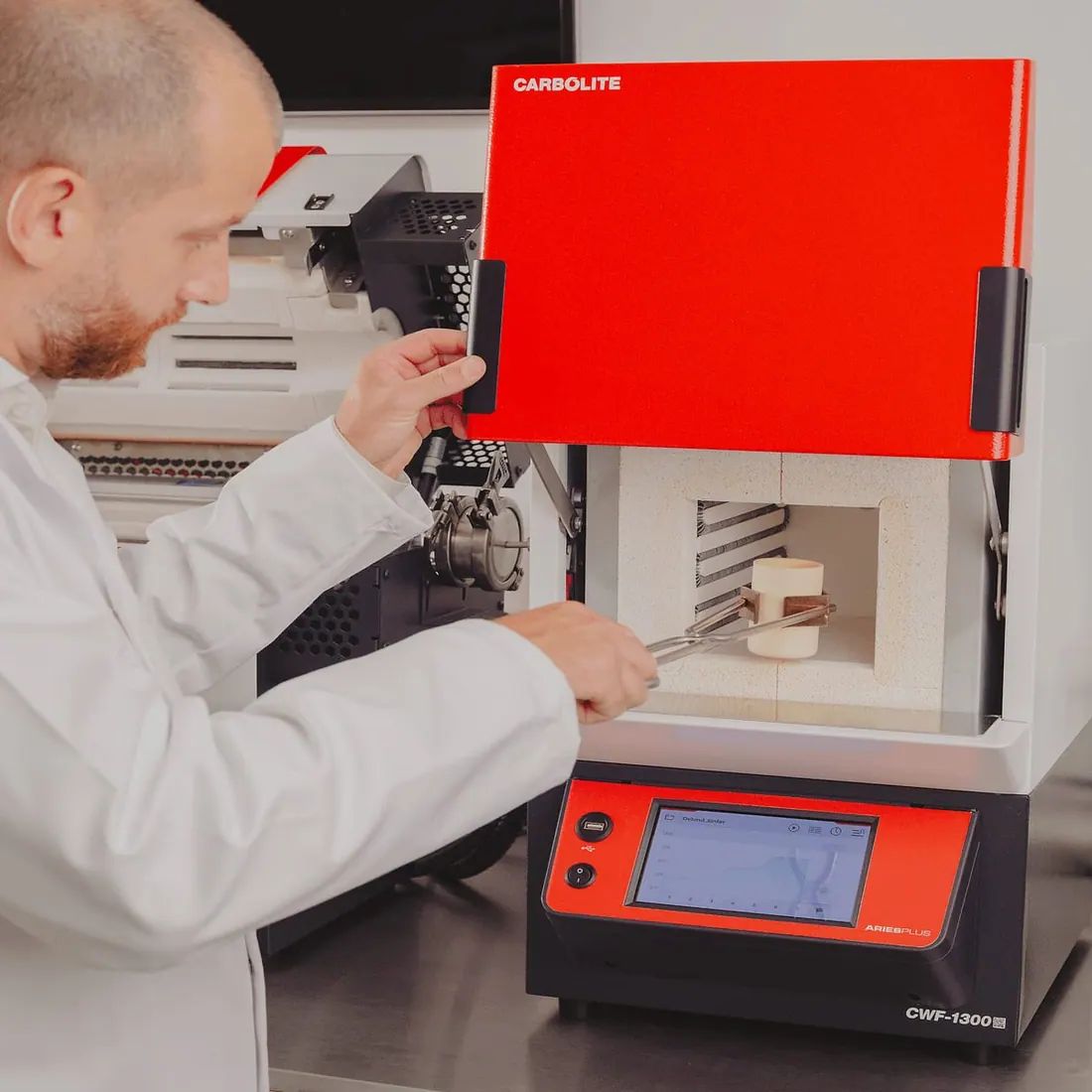

Laboratory Chamber Furnace CWF
Brand: Carbolite Gero | Category: Nanotechnology
A bench mounted general purpose laboratory chamber furnace range in five sizes. A vertical lift door keeps the heated surface away from the user, and metallic retorts can be fitted for work under a modified atmosphere up to 1100 deg C.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 1100, 1200 or 1300 deg C |
| Chamber volumes | 5, 13, 23, 36 or 65 litres |
| Specification | Programmable EPC3016P1 controller |
| Specification | Hard wearing alumina element carrier, furnace entrance and hearth |
| Specification | Free radiating wire wound elements for uniformity |
| Specification | Optional A105 retort in Inconel to 1100 deg C or 314 stainless to 1050 deg C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
