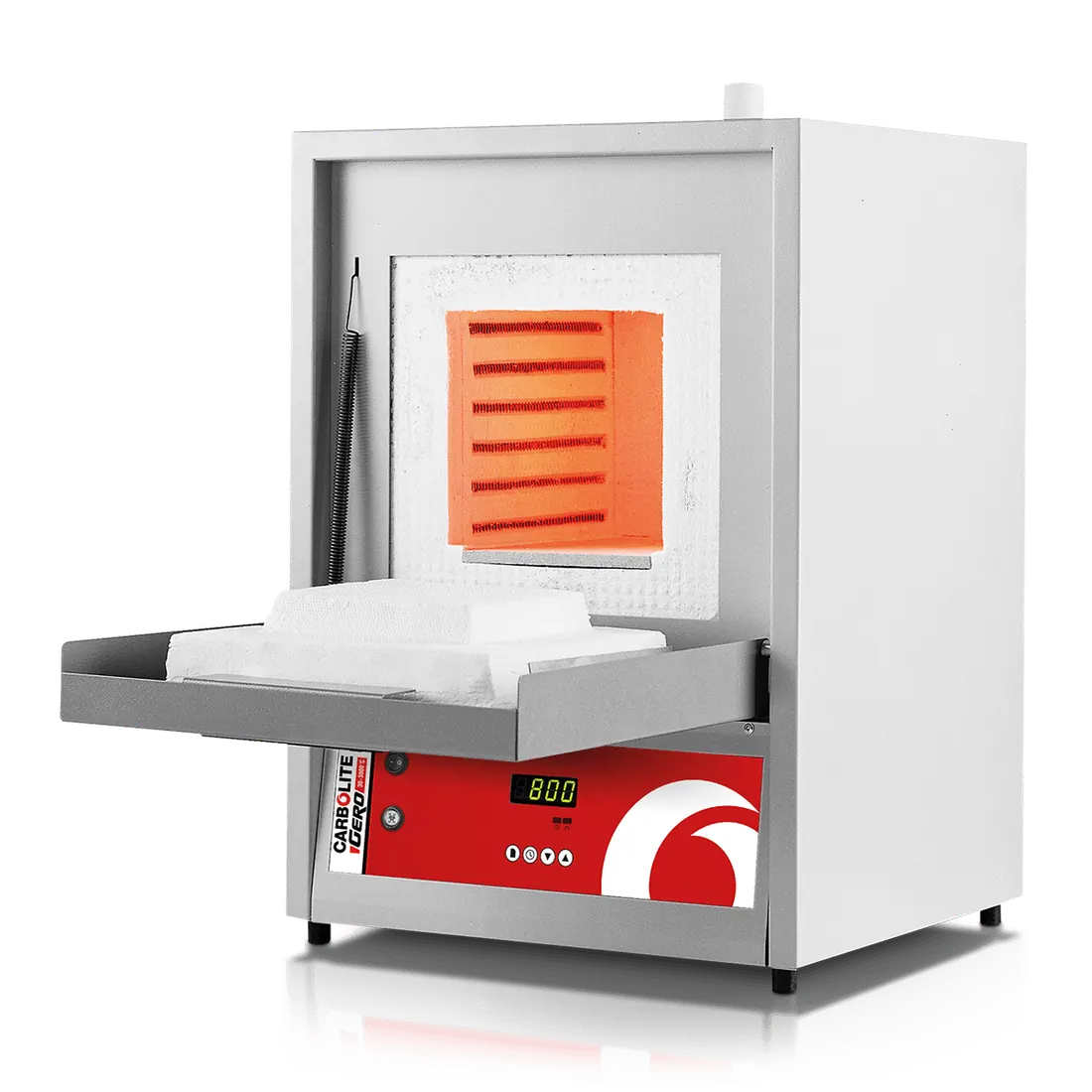

Laboratory Chamber Furnace ELF
Brand: Carbolite Gero | Category: Nanotechnology
Three bench mounted chamber furnaces for light duty and general laboratory use up to 1100 deg C. Low thermal mass insulation combines with free radiating wire elements in the chamber sides, and a drop down door and ceramic chimney are fitted.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1100 deg C |
| Chamber volumes | 6, 14 or 23 litres |
| Maximum continuous operating temperature | 1000 deg C |
| ELF 11/6 | 165 x 180 x 210 mm internal, 2000 W maximum power, 24 kg |
| ELF 11/23 | 235 x 255 x 400 mm internal, 5000 W maximum power, 52 kg |
| Specification | Carbolite 301 controller with single ramp to set-point and process timer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
