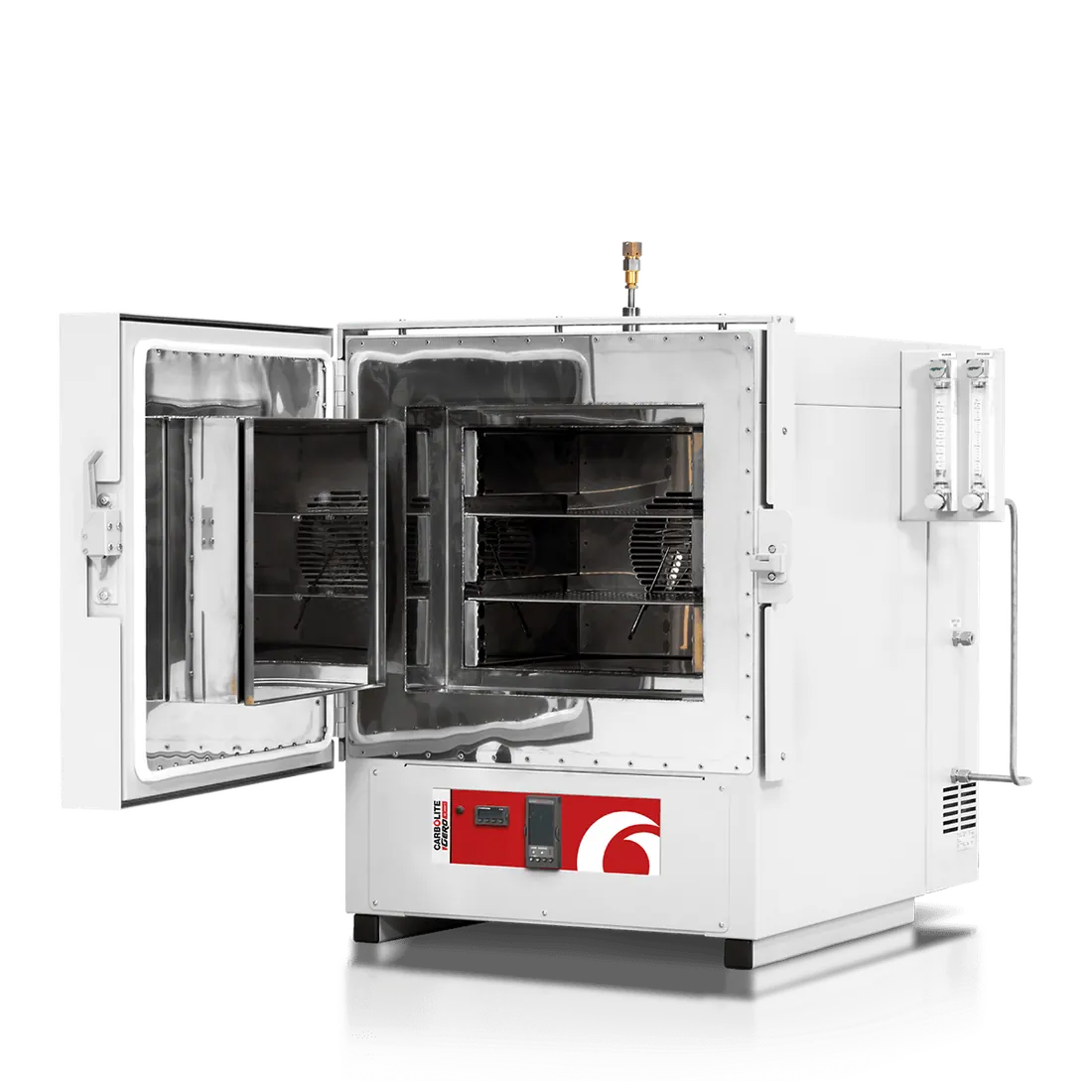

Modified Atmosphere Oven HTMA
Brand: Carbolite Gero | Category: Nanotechnology
A range of high temperature ovens for use with inert atmospheres. Separate flow controls for purge and process gas mean the chamber can be purged quickly and then held at a lower process gas flow, with oxygen levels down to 50 ppm achievable.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating temperatures | 400, 500, 600 or 700 deg C |
| Capacities | 28, 95, 220, 500 and 1000 litres |
| Specification | Oxygen levels down to 50 ppm achievable |
| Specification | Rear mounted fan and side air guides give horizontal airflow |
| Specification | Fully seam welded chamber to contain the modified atmosphere |
| Gas inlet | bulkhead compression fitting for 10 mm tube, maximum 2 bar inlet |
