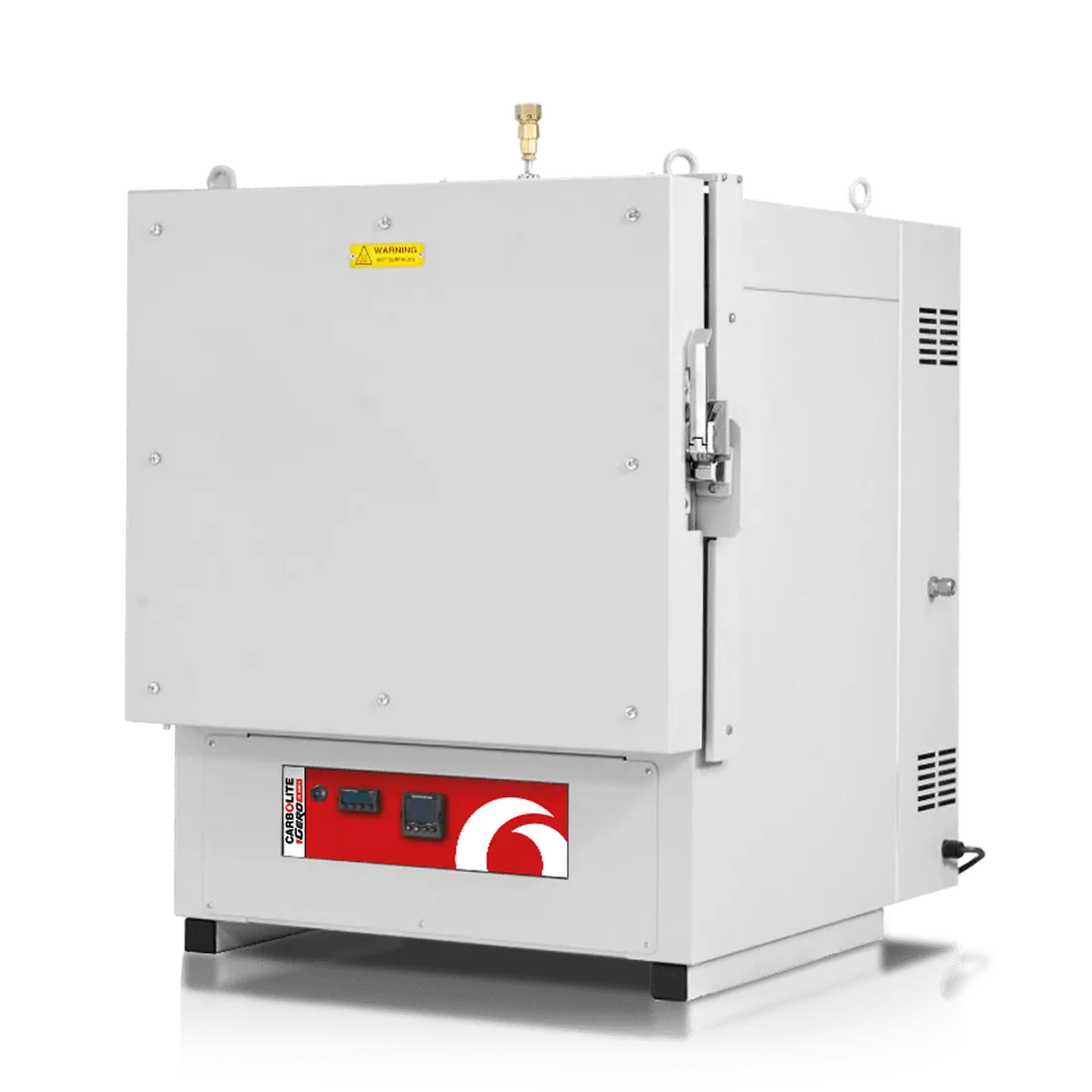

High Temperature Clean Room Oven HTCR
Brand: Carbolite Gero | Category: Nanotechnology
A series of sixteen clean room ovens in five sizes for higher temperature cleanroom work. As standard they suit an ISO 14644-1 Class 6 environment once processed through the material entry regime, and Class 5 versions are available as an option.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperatures | 400, 500 or 600 deg C |
| Chamber volumes | 28 to 1000 litres |
| Specification | Fully sealed low thermal mass insulation to avoid shedding fibres |
| Specification | Fully enclosed brushless fan motor |
| Specification | Polished sealed stainless steel interior with perforated shelves |
| Specification | Over-temperature protection and door switch fitted as standard |
