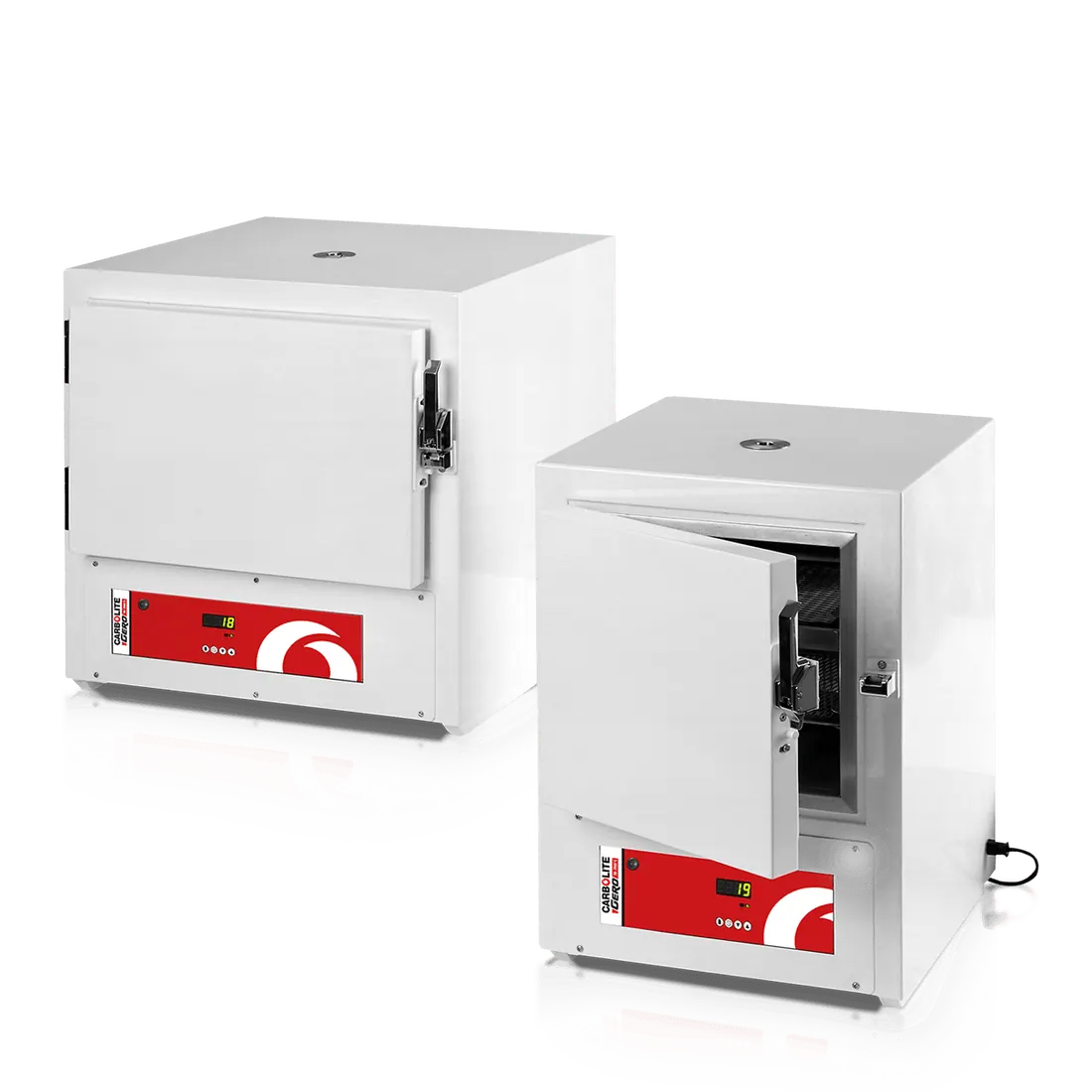

Clean Room Oven CR
Brand: Carbolite Gero | Category: Nanotechnology
A series of nine 250 deg C clean room ovens suitable for operation in an ISO 14644-1 Class 5 environment once processed through the customer's material entry regime. All sources of particulate contamination are sealed.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 250 deg C |
| Chamber volumes | 30 to 220 litres |
| Specification | Fully sealed low thermal mass insulation to avoid shedding fibres |
| Specification | Fully enclosed brushless fan motor |
| Specification | Carbolite 301 controller with single ramp to set-point and process timer |
| Specification | Perforated stainless steel shelves and particle free silicone rubber door seal |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
