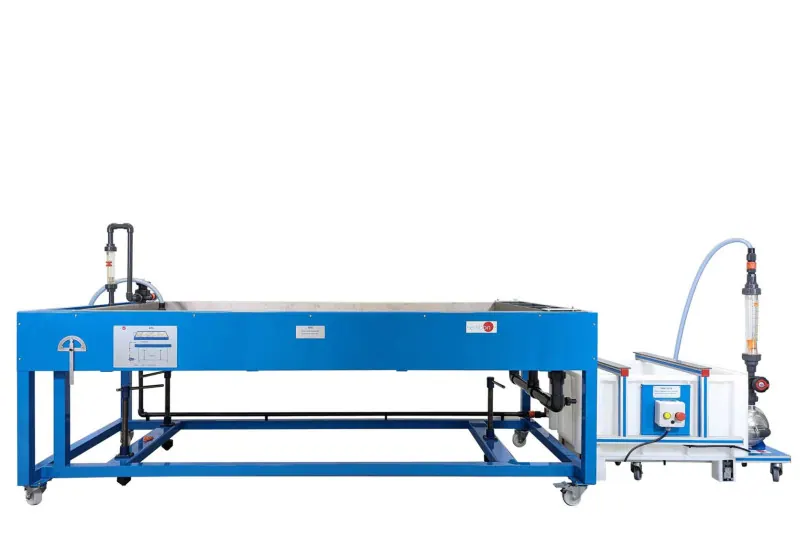

RFS: River Flow Simulator
Brand: EDIBON | Category: Scientific & Laboratory Equipment
RFS is a channel with a mobile bed for modelling river behaviour. Discharge and slope are varied so meandering, bank erosion, deposition, scour around piers and the effect of river training works can be reproduced.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 2500 x 1100 x 1250 mm approx |
| Weight | 100 kg approx |
| Specification | Tank with a working area of 2200 x 1000 mm approx |
| Storage tank, capacity | 250 l |
| Water pump. Q max | 25 l/min |
| Flowmeter, range | 2 to 25 l/min |
