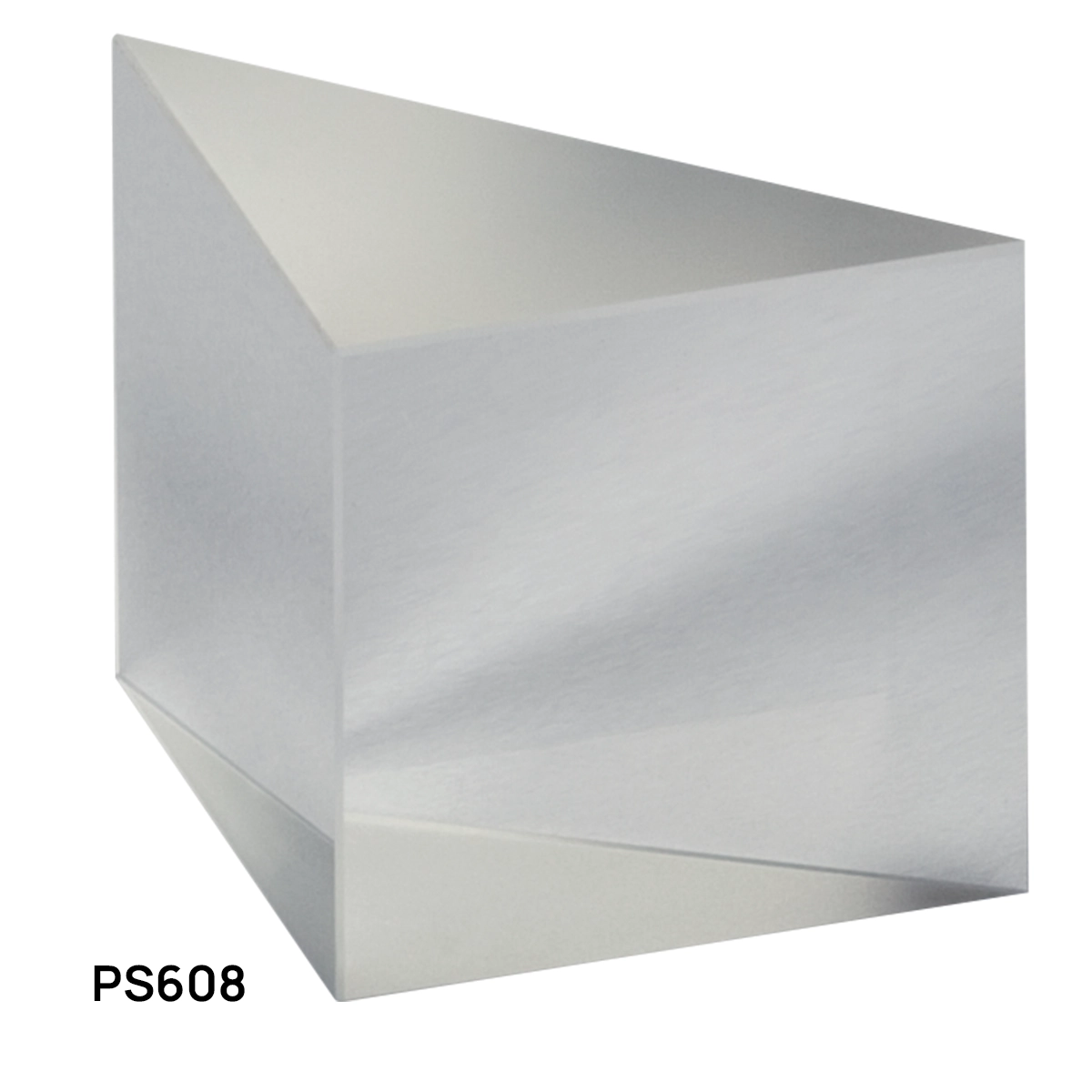

Right-Angle Prisms (PS Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
High precision prisms that turn a beam through 90 degrees by total internal reflection at the hypotenuse, or retroreflect it through 180 degrees. They are a standard classroom demonstration of total internal reflection as well as a beam folding component.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Sizes from 3 mm to 60 mm leg length |
| Materials | N-BK7, UV fused silica, calcium fluoride or zinc selenide |
| Surface quality | 40-20 scratch-dig (60-40 for CaF2 and ZnSe) |
| Surface flatness | lambda/10 at 633 nm for UV fused silica and N-BK7 |
| Clear aperture | 70% of face length and width |
| Specification | N-BK7 versions available with -A, -B or -C AR coatings on the hypotenuse or both legs |
