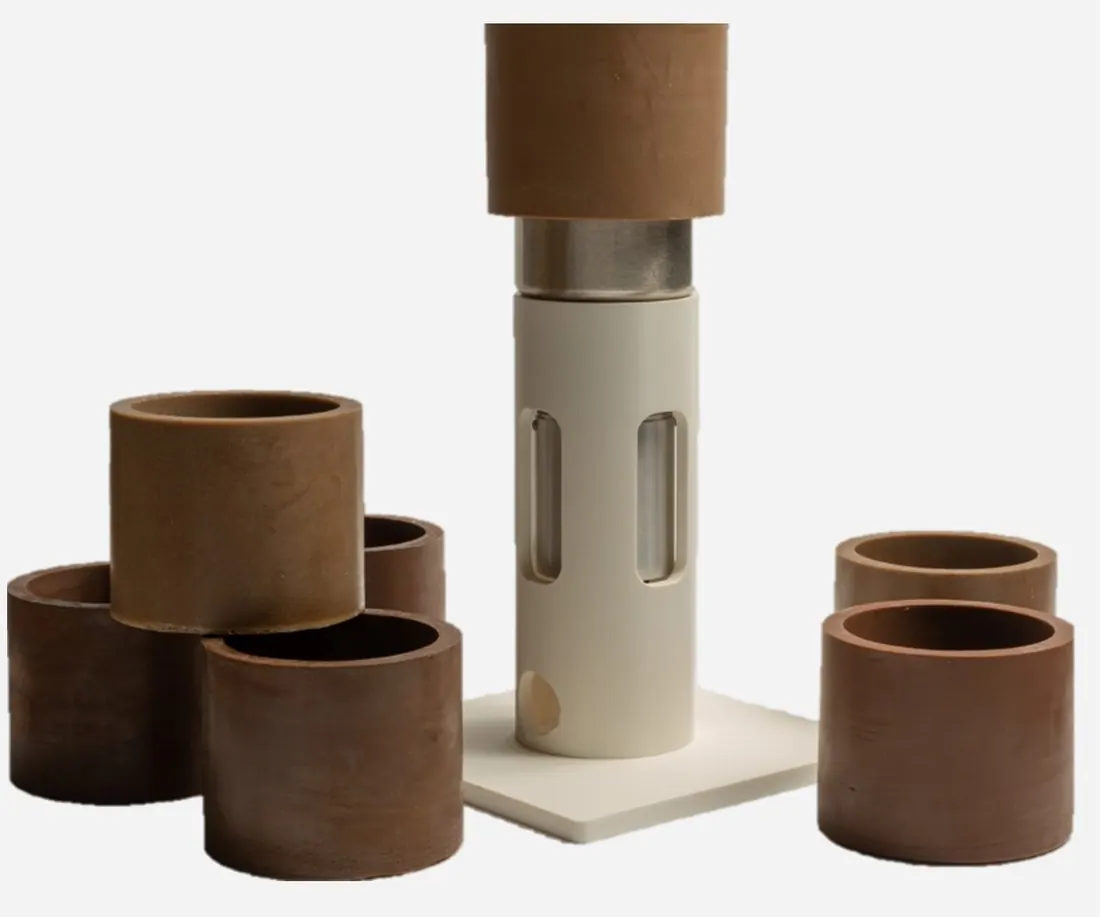

Riso Gamma Spectrometry System
Brand: Riso | Category: Scientific & Laboratory Equipment
A scintillation gamma spectrometry system for routine analysis of natural radionuclide activity concentrations. The results feed the burial dose rate calculations used in luminescence age determination. Detector, lead shield, analysis software and calibration standards are included.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 3 inch by 3 inch NaI(Tl) detector with digital MCA |
| Specification | Resolution 6.3% FWHM at 661 keV for 137Cs |
| External dimensions including lead shield | width 752 mm, depth 508 mm, height 620 mm |
| Specification | Sample weight minimum 50 g, typical 200 g to 300 g, maximum 350 g |
| Specification | Riso gamma spectrum acquisition software and DoseRateAnalyzer software |
| Specification | Calibration standards for 40K, 238U and 232Th, plus a KUTh mixture and background cups |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Riso equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
