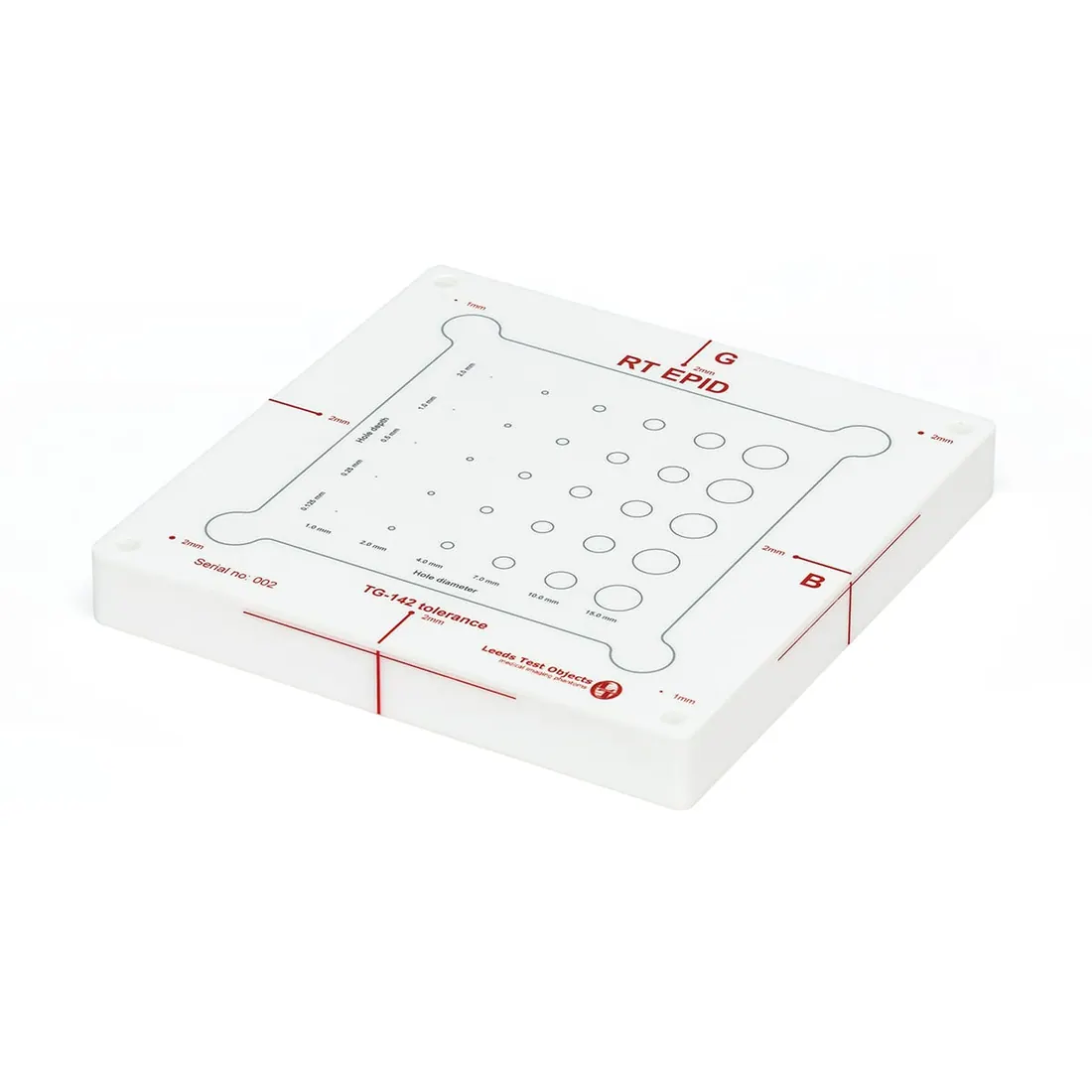

RT EPID-2
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A planar MV imaging quality assurance phantom for electronic portal imaging devices. It is placed directly on the EPID surface and covers the MV imaging tests recommended in AAPM TG-142, including geometric accuracy, resolution, low contrast detectability, uniformity and noise.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 220 x 220 x 24 mm |
| Specification | For all EPID devices |
| Specification | All TG-142 recommended MV imaging tests |
| Tests | geometric accuracy, resolution (PSF), low contrast detectability, uniformity and noise |
| Specification | Alignment marks for room lasers |
| Specification | Placed directly on the EPID surface |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Radiology & Radiotherapy QA Phantoms
- TO CTDI
A CT dose index phantom comprising two PMMA cylinders representing the head and the body. Each cylinder is drilled to accept a pencil ion chamber at the centre and at four peripheral positions, so the user can measure CTDI100, CTDIw, CTDIvol and CTDI free in air.
- RT CUBE
A cubic isocentre phantom with laser alignment marks, two sets of offset marks and a central high density sphere. It is used to check positioning and repositioning accuracy and the coincidence of kV imaging, MV treatment and positioning system isocentres.
- TO CTDI plus
A three cylinder CT dose index phantom that adds a paediatric head section to the standard head and body sizes. The cylinders nest inside one another and are drilled for a pencil chamber at the centre and at four peripheral positions.
