TO CTDI
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

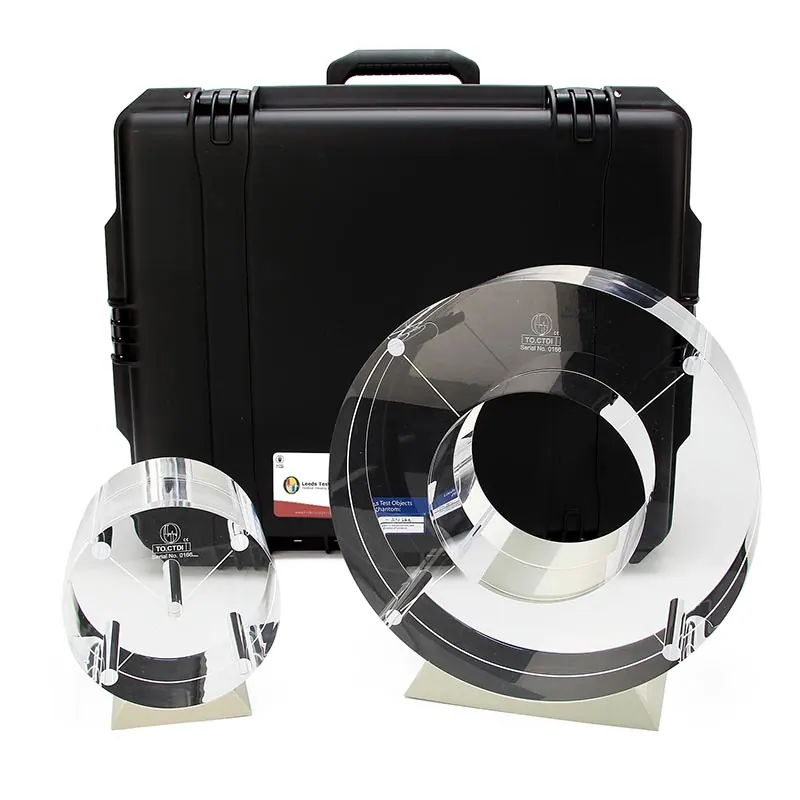

A CT dose index phantom comprising two PMMA cylinders representing the head and the body. Each cylinder is drilled to accept a pencil ion chamber at the centre and at four peripheral positions, so the user can measure CTDI100, CTDIw, CTDIvol and CTDI free in air.
Technical Specifications
| Parameter | Value |
|---|---|
| Head cylinder | 160 mm diameter |
| Body cylinder | 320 mm diameter |
| Cylinder length | 140 mm |
| Specification | Detector holes at centre and at each 90 degree interval, centred 10 mm from the edge |
| Specification | Available nested or as separate head and body phantoms |
| Specification | Conforms to IEC 61223-3-5, IEC 61223-2-6 and IEC 60601-2-44 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
