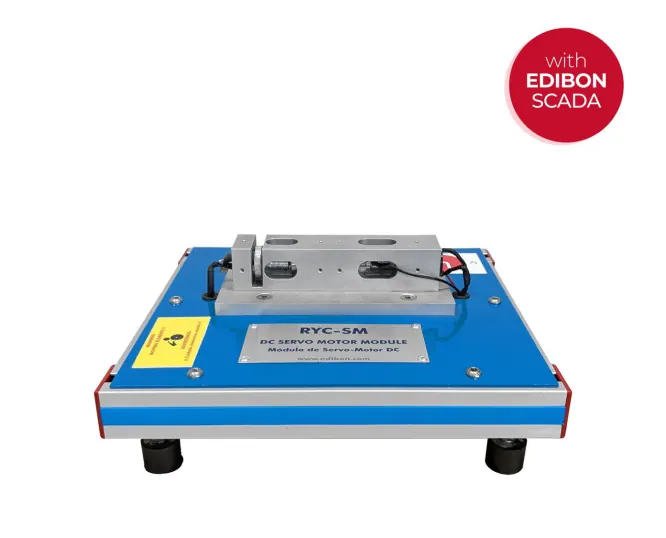

RYC-SM: PID Control and Regulation of a DC Servomotor Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers speed control and position control of a DC servomotor. Speed and position sensors allow the dynamic response of the motor to be analysed, and show how each parameter of the PID controller changes that response under load.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 225 x 300 mm |
| Weight | 5 Kg approx |
| Motor supply | 10 VDC |
| Max speed | 10000 rpm |
| Tachometer output | 10 VDC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
