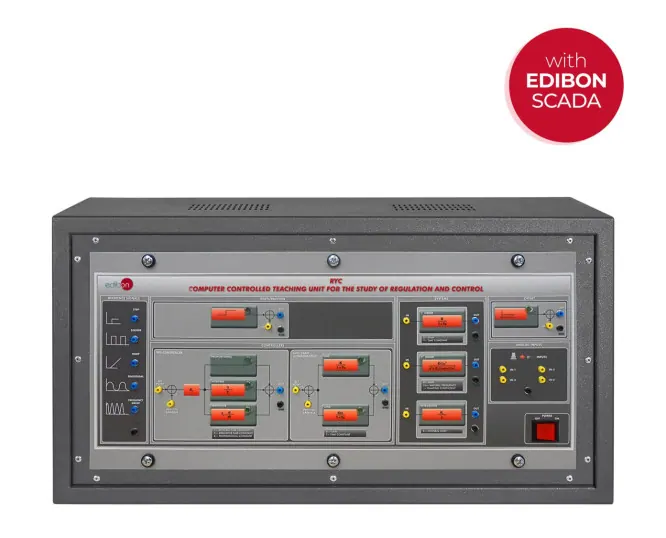

RYC: Computer Controlled Teaching Unit for the Study of Regulation and Control
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The base unit common to every RYC type unit, on which regulation and automatic control practices are carried out. It is organised into functional sections that provide the reference generation, control and measurement for the process units.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 640 x 320 x 330 mm approx |
| Weight | 10 Kg approx |
| Reference signals | step, square, ramp and sine, frequency 0 Hz to 200 Hz |
| PID controller | Kc -10 to +10, Ti 0 to 100 s, Td 0 to 100 s |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
