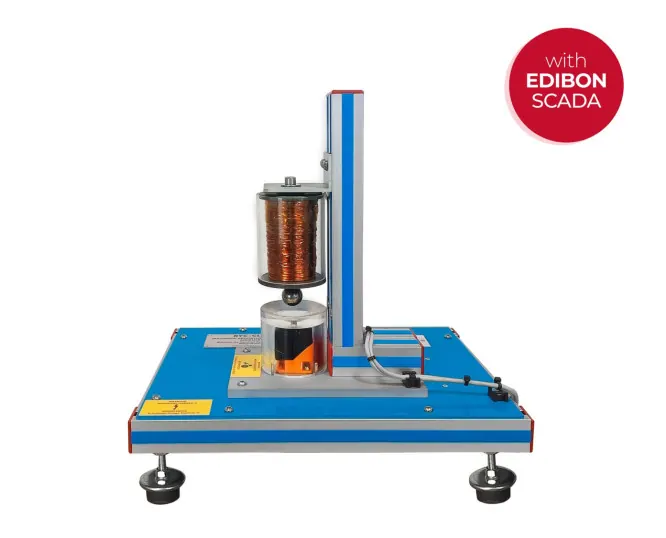

RYC-CLM: PID Magnetic Levitation Control and Regulation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A strongly nonlinear process in which a metal ball is held in the air by an electromagnet. Position and current sensors allow the height of the ball to be controlled, so students see what makes a nonlinear plant hard to regulate.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 420 x 310 x 360 mm |
| Weight | 6 Kg approx |
| Distance range | 0 - 26 mm |
| Coil inductance | 10 mH |
| Full scale output | 10 V |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
