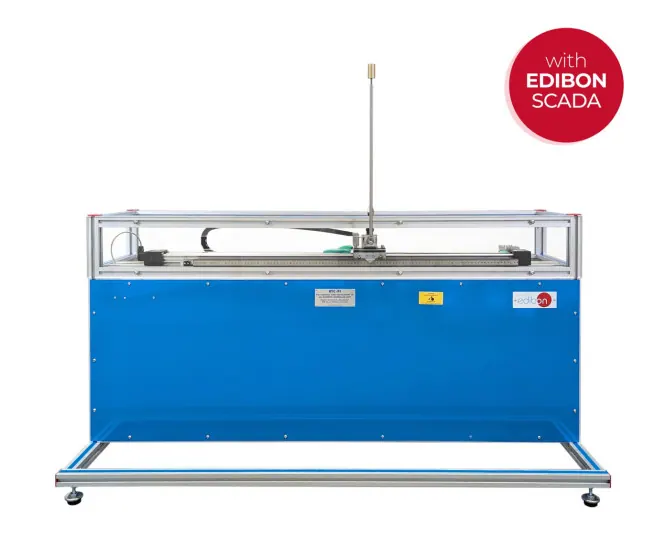

RYC-PI: PID Control and Regulation of an Inverted Pendulum Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An inverted pendulum mounted on a moving carriage, one of the most unstable processes used in control teaching. Position and angle sensors allow the balance of the pendulum to be controlled and the tuning of the loop to be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 600 x 800 mm |
| Weight | 40 Kg approx |
| Power supply | 12 VDC |
| Maximum speed | 10000 rpm |
| Maximum length | 1000 mm |
