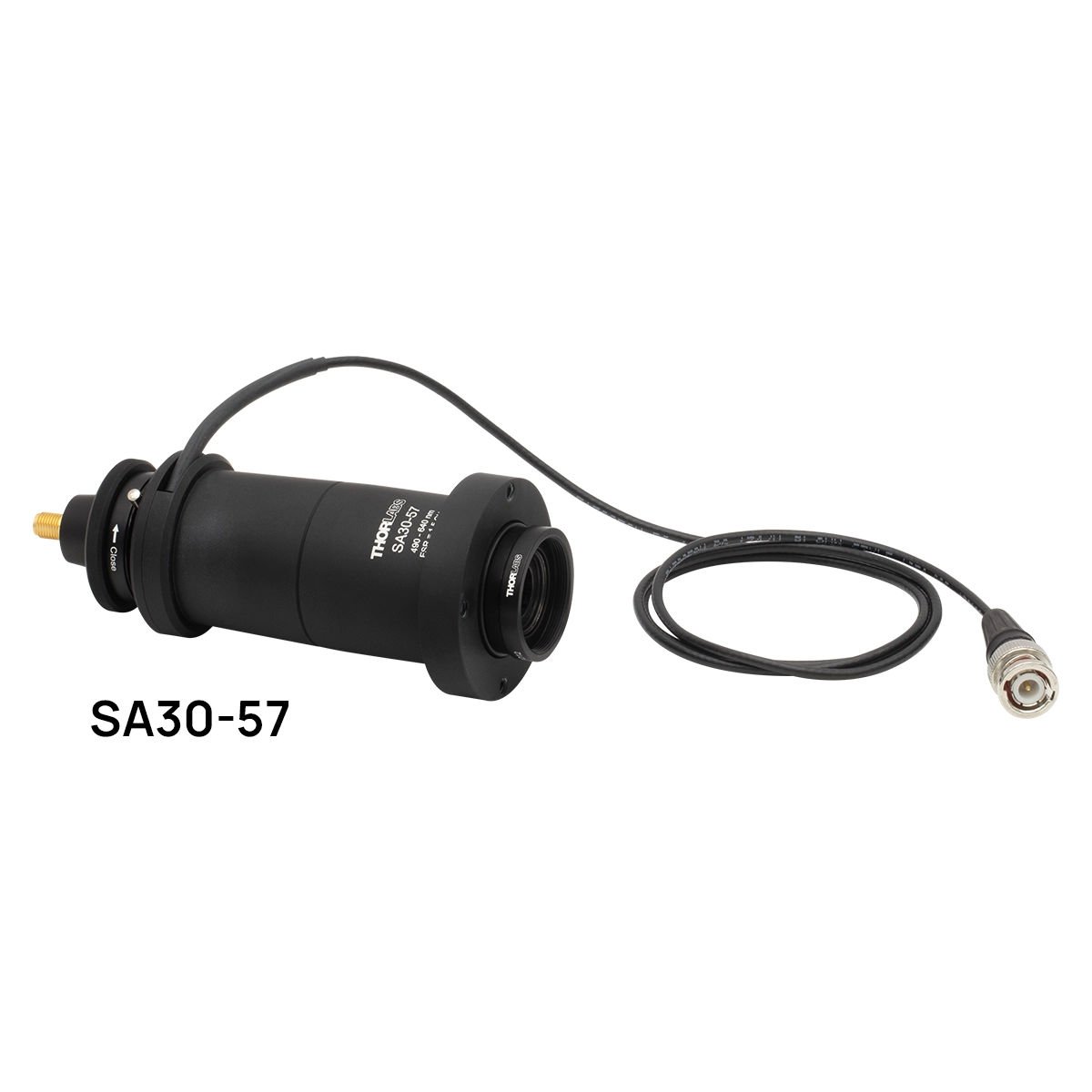

SA Series Scanning Fabry-Perot Interferometers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Confocal cavity spectrum analysers that resolve the fine structure of a continuous wave laser, including mode hops and linewidth. A piezo scans the cavity length and the transmitted signal is read on an oscilloscope.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Optical coatings for wavelengths from 290 nm to 4400 nm |
| Free spectral range | 1.5 GHz or 10 GHz |
| Minimum finesse values | 150, 200 or 1500 |
| Resolution | less than 1 MHz to 67 MHz depending on model |
| Cavity | athermal Invar for thermal stability, factory calibrated finesse |
| Specification | SMA or BNC coupled; SA201B controller supplies the scan voltage |
