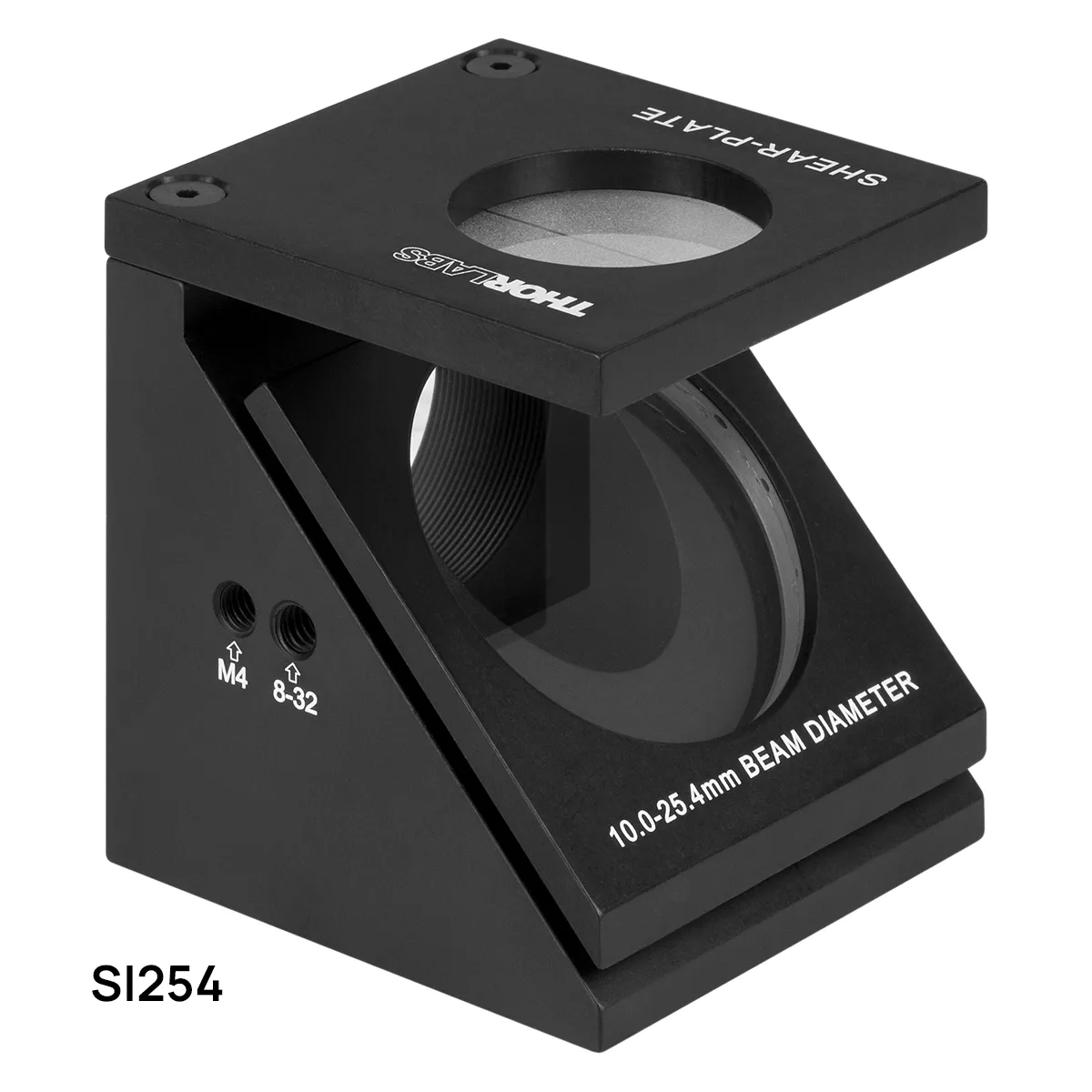

SI Series Shearing Interferometers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Shear plate devices that give a quick qualitative check of whether a coherent beam is collimated. Fringes parallel to the reference line mean the beam is collimated, and rotated fringes show convergence or divergence.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Options for beam diameters from 1 mm to 50 mm |
| Beam pick-off | less than 10% |
| Specification | Shear plate wedge angles from 117 arcsec (SI035P) to 10 arcsec (SI500P) |
| Specification | Magnetically coupled kinematic design for quick shear plate changes |
| Specification | 30 mm cage system compatible at the exit port except the SI500 |
| Specification | Imperial and metric threaded mounting holes |
