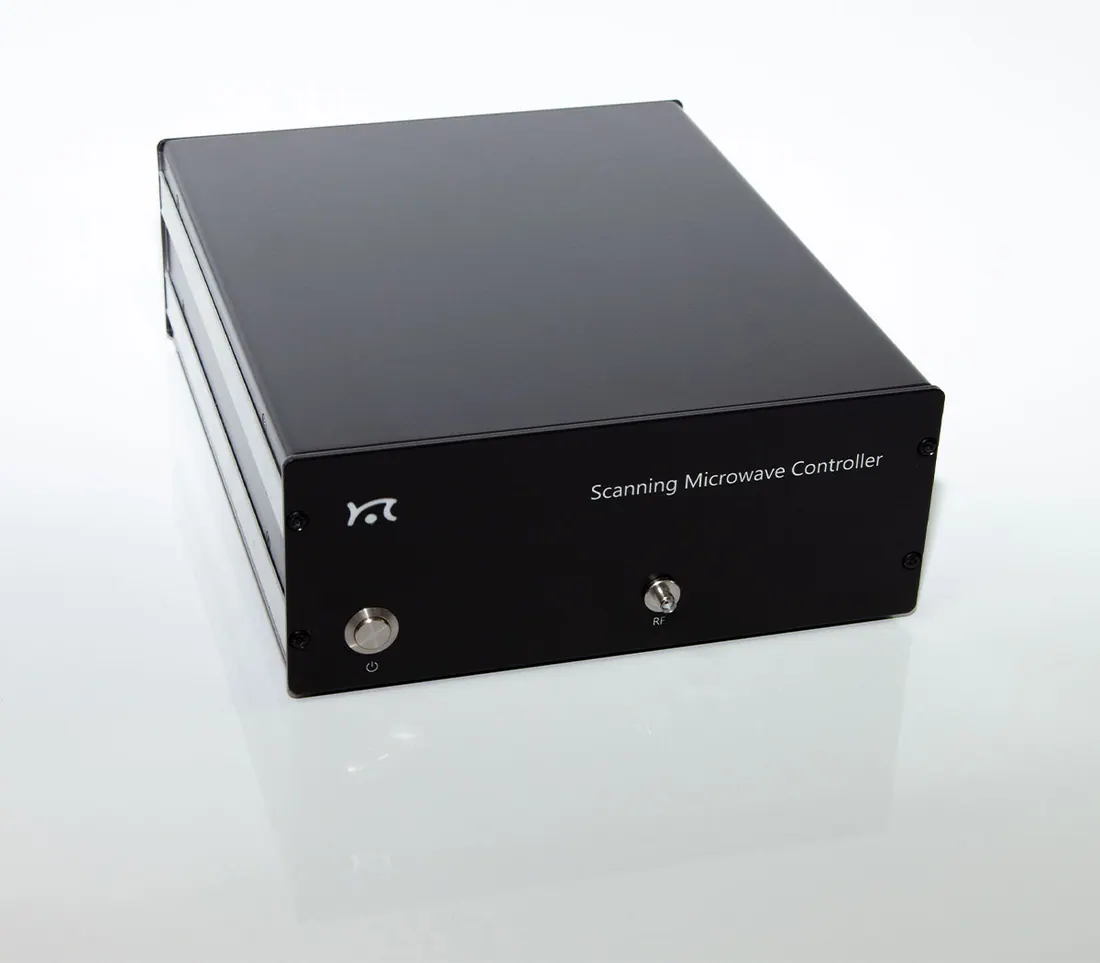

Scanning Microwave Microscopy (SMM)
Brand: Nanosurf | Category: Nanotechnology
The radio frequency source and receiver that adds scanning microwave microscopy to a Nanosurf AFM. It works near 5 GHz and resolves capacitance changes below 0.5 aF, which is used for dopant profiling in semiconductors and for characterising dielectrics and metals.
Technical Specifications
| Parameter | Value |
|---|---|
| RF frequency | about 5 GHz |
| RF power | up to 4 dBm |
| Sensitivity to capacitance | less than 0.5 aF |
| SMM modes | S11 and dS/dV |
| Dimensions | 220 x 90 x 260 mm, weight 1.9 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM, and with AE550 and AE1100 enclosures |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
