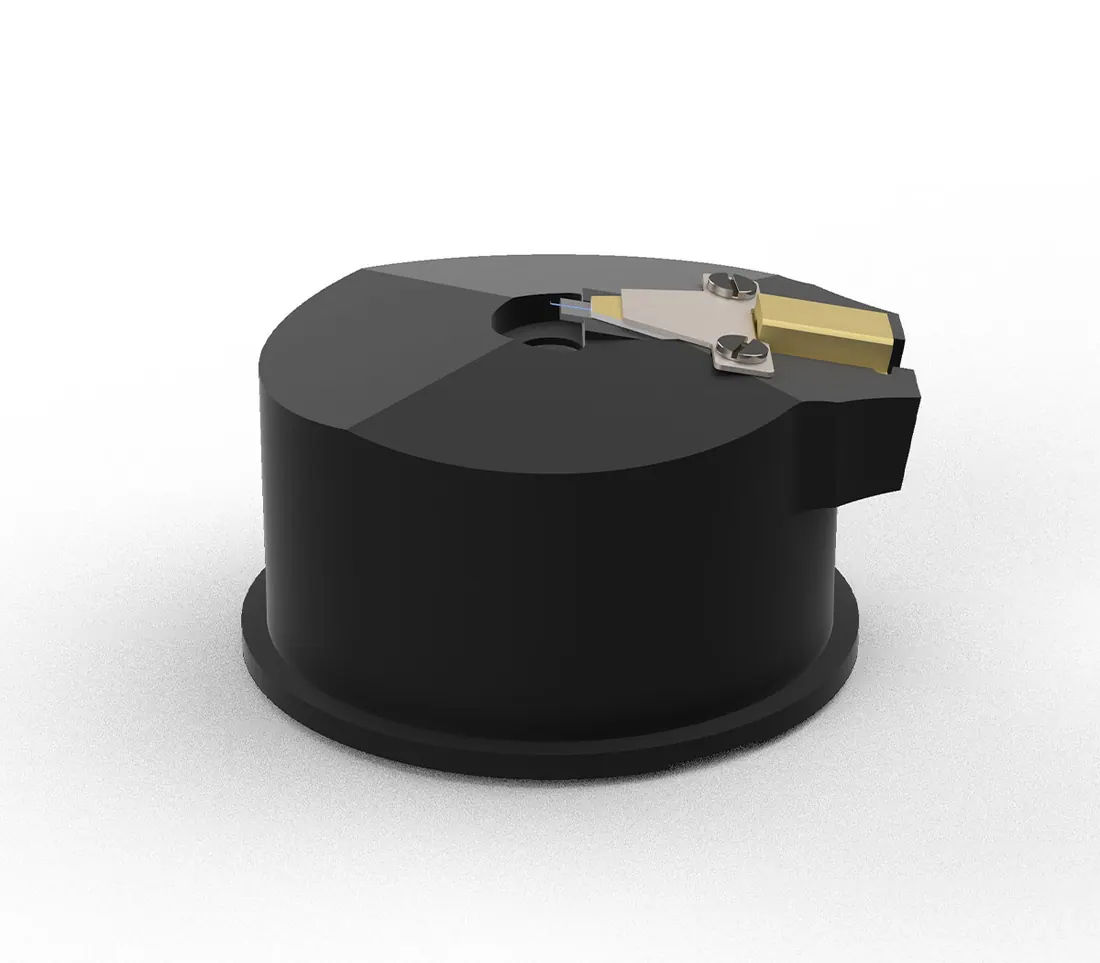

Scanning Microwave Microscopy (SMM) Cantilever Holder for DriveAFM
Brand: Nanosurf | Category: Nanotechnology
A cantilever holder that carries the radio frequency line through to the tip for scanning microwave microscopy on the DriveAFM. It uses a 10 inch SMA to SMPM cable and works with the separate SMM source and receiver unit, which supplies the microwave signal.
Technical Specifications
| Parameter | Value |
|---|---|
| RF cable | 10 inch, SMA to SMPM |
| Dimensions | 22 mm diameter x 14 mm |
| Weight | 1.9 g |
| Required | RF source and receiver for SMM |
| Compatibility | DriveAFM |
