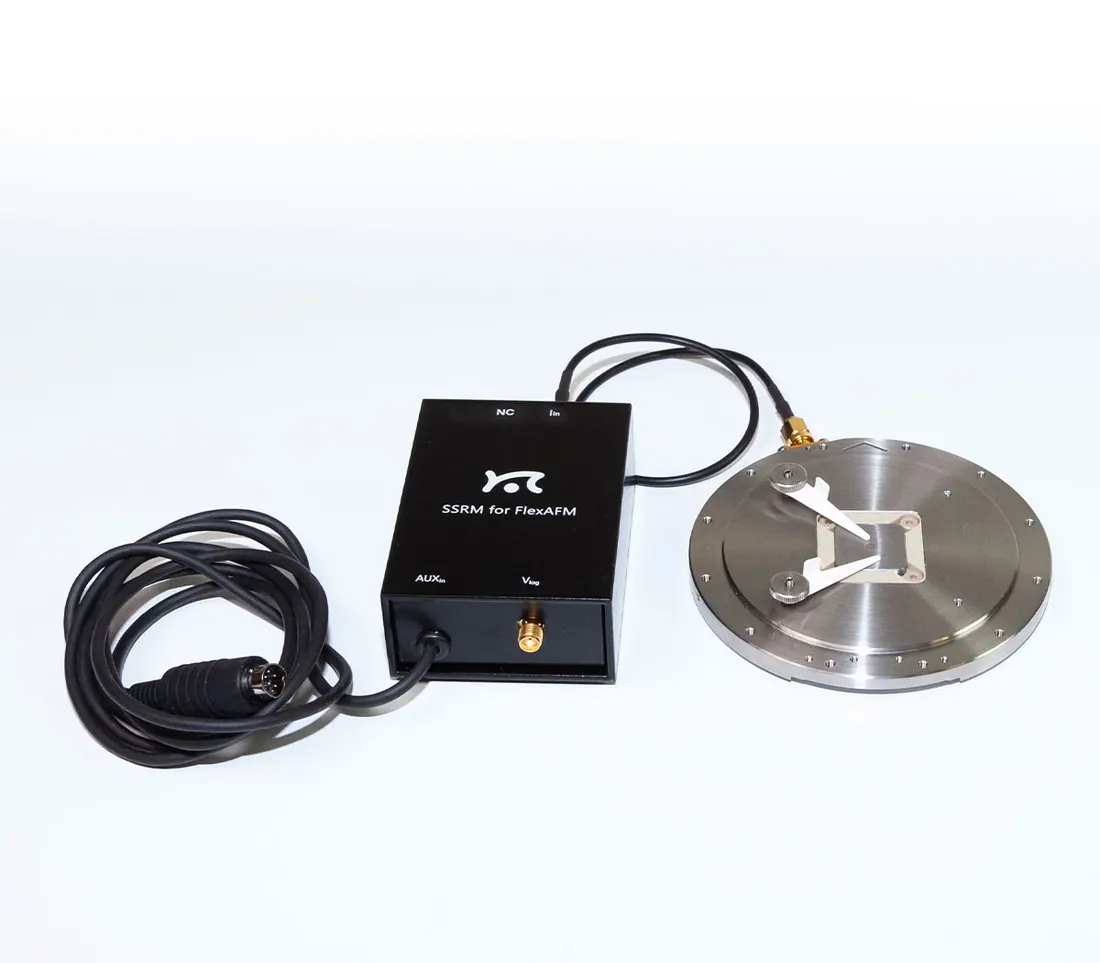

Scanning Spreading Resistance Microscopy (SSRM) Module
Brand: Nanosurf | Category: Nanotechnology
A logarithmic transimpedance amplifier with matching sample holder for scanning spreading resistance microscopy. Its single logarithmic range covers 1 pA to 5 mA, which is what is needed to map carrier concentration across a doped semiconductor cross section.
Technical Specifications
| Parameter | Value |
|---|---|
| Current range | 1 pA to 5 mA |
| Current-to-voltage conversion | logarithmic |
| Current noise | 100 fA per root Hz at 1 pA |
| Sample holder | 100 mm diameter x 8 mm, weight 0.5 kg |
| SSRM amplifier | 50 x 50 x 40 mm, weight 0.1 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
