SDM
Brand: Karl Kaps | Category: Medical Equipment

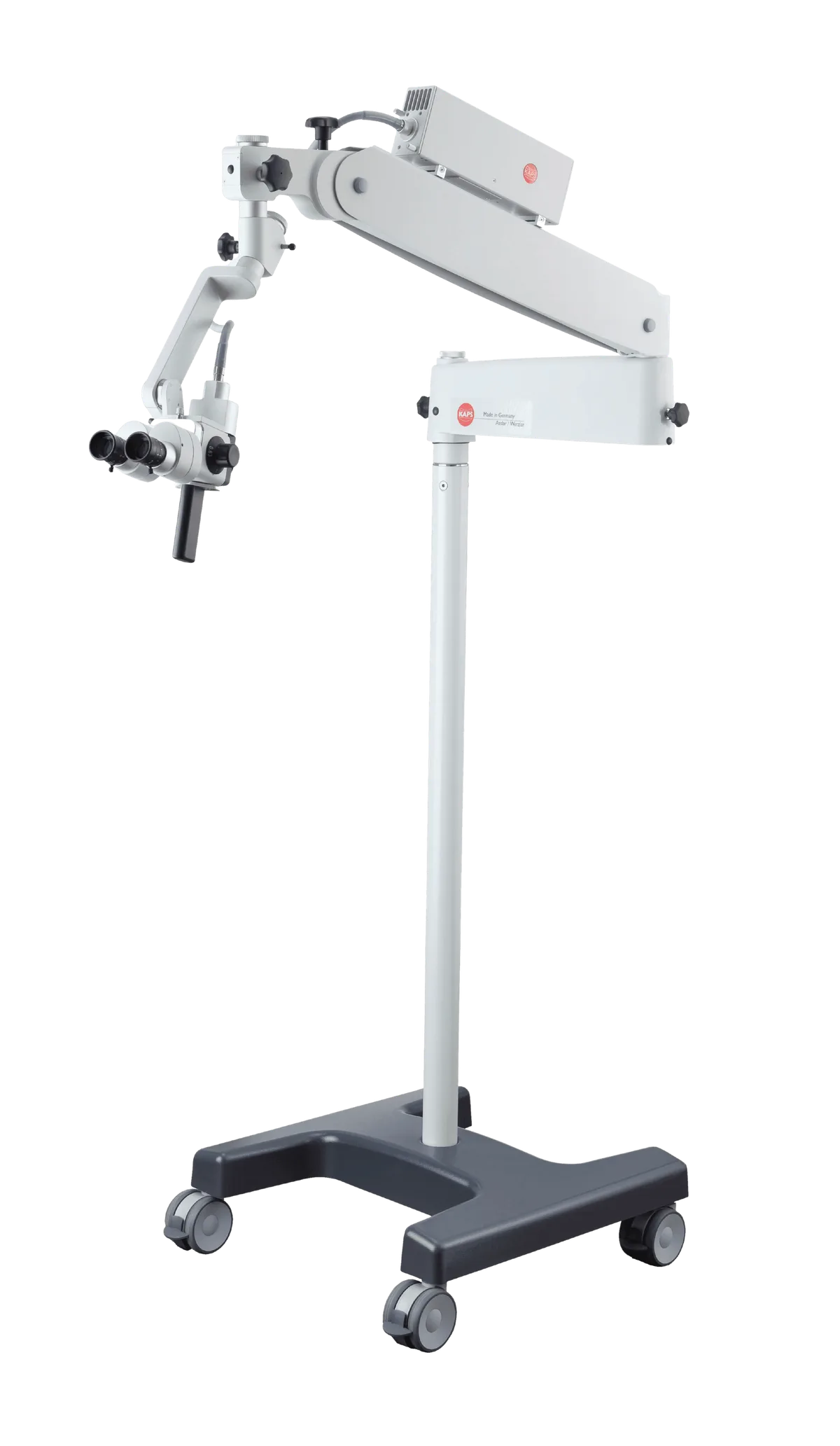

The SDM is the economical entry to the Kaps ENT range, recommended by the manufacturer for newly founded practices or as a second instrument for standard screenings. Its 3x magnification changer is tuned to ENT diagnostics and gives a three-dimensional image with the depth of field that makes work inside the ear canal easier. The LEDone unit runs silently and without vibration, needs no active cooling and holds a constant white light across a lifespan of around 30,000 hours. Objectives are interchangeable at f=200, 250, 300 or 400 mm, WF 12.5 x V wide-field eyepieces are standard, and a robust metal housing stands up to disinfectants in clinical use.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Magnification changer | 3 steps |
| Objective options | f = 200, 250, 300 or 400 mm |
| Standard eyepieces | WF 12.5× V |
| Optional coupling | 45° |
Selected details from the named Karl Kaps product page. Optical performance and compatibility depend on the chosen objectives, eyepieces, illumination and mounting. Optional equipment is not included unless specified in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Karl Kaps equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Medical Microscopes & Colposcopes
- Karl Kaps ViCo S HD
A Full HD video colposcope that combines a video camera with LED lighting in a compact real-time unit for diagnosis and documentation of findings. Autofocus holds the image sharp without manual adjustment, and an electronic green filter makes vascular structures visible at the push of a button.
- SOM® 62 Examination (SOM® 22/32/62)
The SOM examination series has been a fixture in ENT practices for decades and is aimed at clinicians who want an uncomplicated but highly precise diagnostic instrument. A 3x or 5x magnification changer works with apochromatically corrected, interchangeable objectives from f=200 to 400 mm, and the optional Kaps Variflex-100 covers 220 mm to 320 mm from a single compact lens with integrated lens protection. Mounting on the wall, on the ceiling or directly on the treatment unit makes it a practical answer where floor space is scarce. Because the build is modular, video documentation and the Kaps LED upgrade can often be retrofitted to older units years later.
- Karl Kaps SOM 52/42
A modular colposcope supplied either as the SOM 52 on a mobile stand or as the SOM 42 mounted on a treatment chair, with the same optics in both configurations. Lighting, magnification and documentation modules can be specified to suit the practice and added later as requirements change, and the system accepts laser adaptation.
