SedentexCT IQ
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

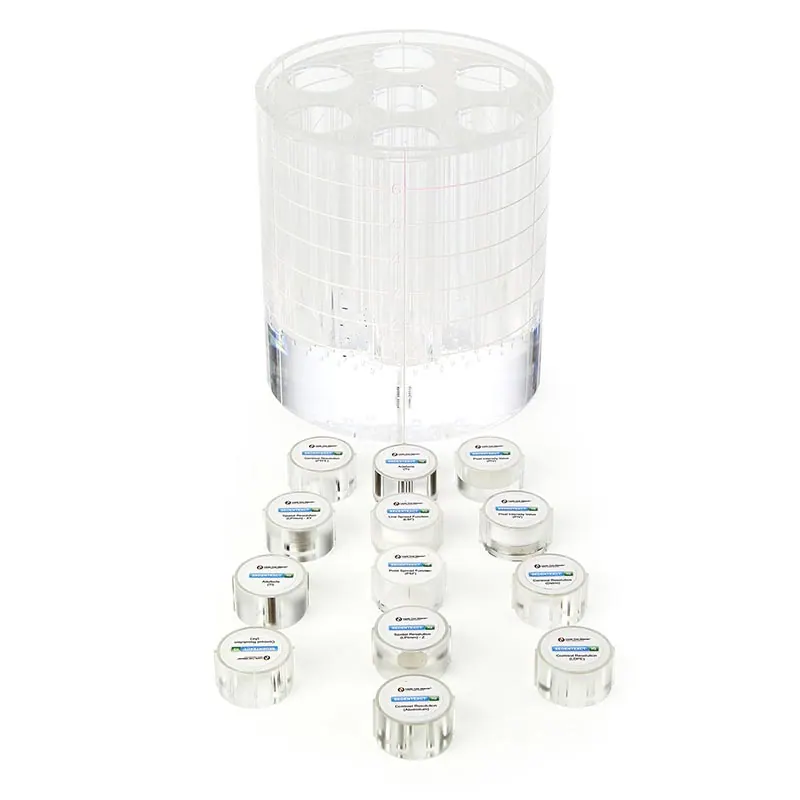

A dental cone beam CT image quality phantom comprising a PMMA cylinder with recesses for test inserts. The body provides uniform PMMA for noise and an air hole array for geometric distortion, while the inserts add spatial resolution, contrast and density measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PMMA cylinder, 160 mm diameter |
| Specification | Uniform PMMA lower section, density 1.20 plus or minus 1.00%, for noise and uniformity |
| Specification | Geometric distortion array of 2.0 mm diameter, 3.0 mm deep air gaps at 10.0 mm pitch |
| Line spread function insert | PMMA and PTFE interface |
| Point spread function insert | 0.25 mm diameter stainless steel wire suspended in air |
| Line pairs per mm insert | alternating aluminium and polymer |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Radiology & Radiotherapy QA Phantoms
- SedentexCTIQ Paediatric
An accessory to the SedentexCT IQ phantom that lets the standard test inserts be placed in a body sized for paediatric cone beam CT imaging. Image quality is then assessed at a phantom size that represents a child rather than an adult head. It complies with the Chinese YYT 0795-2022 standard.
- SedentexCT DI
A dose index phantom for dental cone beam CT, built from a stack of PMMA plates forming a cylinder that represents the adult head. It accommodates several detector types so the department can use the dosimetry equipment it already owns.
- TO PAN
A dental phantom that quantifies the complex focal trough of a panoramic x-ray unit, allowing a full assessment of the parameters that affect image quality. It works with both film and digital systems and comes with a tripod for universal positioning.
